Nintendo Entertainment System Game Cartridge Tray Springs Replacement

Scritto Da: nicholasweiser

Commenti: 10

Nintendo Entertainment System Game Cartridge Tray Springs Replacement

Difficoltà

Easy

Passi

Tempo Necessario

15 - 20 minuti

Introduzione

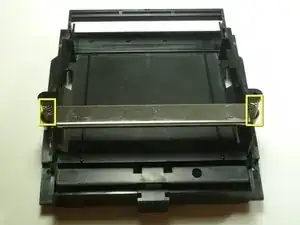

The springs located in the cartridge tray ware out over time and must be replaced. Follow our guide to show you how to remove the springs.

Strumenti

Ricambi

Nintendo NES-001 Game Cartridge Tray

Passo 1

Remove the six 13.25mm Phillips screws on the bottom of the game console with a #2.5 flathead screwdriver.
The screws are recessed about 40 mm.
Flip the game console right side up and take off the top by pulling it up and away from the rest of the device with your hands.

the outside screws are a little deep, plan ahead :)

Joseph McCord - 03/04/17

Why use a slotted driver? The screws are phillips. Both #1 and #2 work for me.

kmcrawford111 - 15/10/17

Passo 2

Remove the seven 13.25mm Phillips screws from the metal cover with a Phillips head #2 screwdriver.
Remove the metal cover by pulling it up and away from the rest of the console with your hands.

Passo 3

Remove the two silver 17.45mm Phillips screws from the cartridge tray using a Phillips head #2 screwdriver.
Remove the two bronze 13.25mm Phillips screws from the cartridge tray using a Phillips head #2 screwdriver.
Slide the cartridge tray toward you, away from the 72-PIN connector, and off the motherboard assembly.

There may also be two short/yellow screws at the upper (back) right and left of the cartridge tray.

Jay - 15/04/17

Passo 4

Note: Underneath the cartridge tray is a black trapezoid-shaped tab/lip (see marker). When properly assembled this tab/lip goes below the motherboard and shielding as seen here.
During reassembly, make sure you orient this tab underneath the motherboard in addition to orienting the tray on top. Failure to do so will bow the cartridge tray and place stress on the component, causing the cartridge spring mechanism to bind.

This is so unclear! I have no idea what tab this step is referring to.

trevorsklar - 08/01/17

So, it’s a year later, and I have a lot more experience with this system now. The front of the cartridge tray needs to hook under the edge of the board.

It’s much easier to get the tray on and off if you just make sure the board is unscrewed from the case. Then pick the board up a little and the tray should be much easier to slide on and off.

trevorsklar - 06/01/18

Me too... No idea whatsoever

zac - 21/01/17

its when your replacing the cartridge tray, if u do it wrong the tray will feel like it's bowing up in the middle, like when u put in the screws u have to press the tray down to get the screw holes to line up / be flush, if u get the lip underneath to catch correctly there will be no issue/bow u wan't have to press down on it, or make the screws pull the tray to the motherboard, instead the tray will be flush with no pressure applied, i had no idea what he meant either until i was reversing the steps.

Joseph McCord - 03/04/17

also not all NES are the same underneath, my tab was much less noticeable and i had one less screw to get the shield off then he showed. and 2 less screws to remove the cartridge tray.

Joseph McCord - 03/04/17

This seemed very unclear to me at first, until I tried to replace the cart tray. I apparently didn’t get the little lip under the mobo on my first attempt, and I noticed there was a pretty decent chunk of space between the front brass screw holes and their corresponding holes on the mobo. I reseated it, and the second time I heard a little click (apparently the lip going under the mobo). This time the bottom/brass screw holes were virtually FLUSH with the mobo holes. If you see a chunk of space between the cart tray and the mobo near the brass screw holes you didn’t get the lip under the mobo.

Gary - 08/04/18

I’ve added a new, better picture with additional clarification. Hope this helps.
