Nintendo WaveBird Wireless Controller Joystick Replacement

Scritto Da: Garrett Leung
  • Commenti: 1
Nintendo WaveBird Wireless Controller Joystick Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

5 - 10 minuti

Introduzione

This guide will show you the steps on installing the joystick. This will be helpful if the joystick isn't working properly.

  1. gIc3eroIeGlIjSQ2
    gIc3eroIeGlIjSQ2
    kB3lriVOXO6M2WJ5

    • Pull down on the battery cover release lever and pull back to remove the cover.

  2. ihC1vNSuSNCMJlKO

    • Remove both batteries from the device.

  3. BQJIvRpASkXSABSU
    BQJIvRpASkXSABSU
    1KiSGhUGXcCNBbT4

    • Remove the eight 9 mm screws from the back panel using the Tri-point Y1 screwdriver.

    • During reassembly, firmly hold the panels of the controller together while replacing the screws so the panels do not separate.

  4. ivsa5goaQNZepGLO
    ivsa5goaQNZepGLO
    RHjvYmMuCMeWQGnh

    • Carefully turn over the controller and place it on a flat surface.

    • Slowly separate the top panel from the bottom panel.

    • The buttons are loose and may fall off the motherboard.

    • Once separated, set aside the top panel.

    • During reassembly, make sure the front panel lines up with the buttons so they slide back into place.

  5. UGNXFfptbAxhMZgc
    UGNXFfptbAxhMZgc
    5tGonOCHcVQ1Cnc6
    EVZh3kaOrPmCQYVV

    • Use tweezers to remove the buttons.

    • It may be easier to remove the A button off of the pad by lifting it with your fingers.

    • During reassembly, make sure all buttons are in their respective sockets so they match up with the front panel.

  6. ImgQTJTKsv6QIOrr
    ImgQTJTKsv6QIOrr
    uEmTtAgDekchWe2c

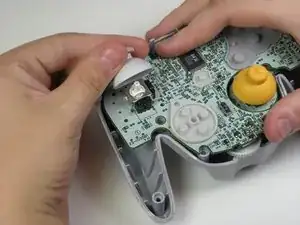

    • Grab the base of the grey joystick cover with one hand and firmly hold down the rest of the controller with the other hand.

    • Pull off the grey joystick cover.

    • During reassembly, make sure the slots inside the joystick cover line up with the motherboard so it can fit back together.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Garrett Leung

Membro da: 17/04/13

955 Reputazione

Un commento

Question. My wavebird joystick wobbles a lot and gets stuck in directions I’m not inputting. Will replacing the top of the stick fix this? Or would I have to solder a new analog stick to the board?

Golgamang -
