Nixon Mission Android Wear Front Screen Replacement

Scritto Da: Venkata
  • Commenti: 2
Nixon Mission Android Wear Front Screen Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

10 minuti

Introduzione

  1. L5OWfEGq4fWIRBRq

    • Remove 4 4.5mm Phillips head screws from back side of watch using PH00 Phillips head.

  2. 6UGJTWpKQburEIFx

    • Remove the back plate of watch.

  3. uvWQ1S5s1hnCZIsN

    • Unclip 5 latches from motherboard using a spudger.

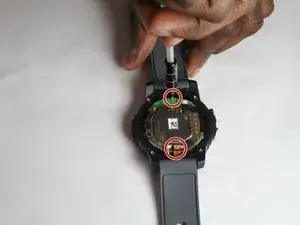

  4. jFuo5r5JjDZGlRvn

    • Remove 2 3.0mm Phillips screws from motherboard using PH00 Phillips head.

  5. mtxbIh46NOYZyDyL

    • Carefully remove motherboard & internal screen.

  6. hIsBKfgaVXYKwgSN

    • Remove 4 7.0mm hex-screws from front of watch using H1.5 Hex head.

  7. ZJVIf22HewdVNfRB

    • Remove outer screen frame from front of watch.

  8. eUcyw6LKKyGVoZSI

    • Remove 4 4.5mm Phillips gold screws from back of watch using PH00 Phillips head.

  9. kgsSy2Ki1g3rJWRG

    • Remove outer protective screen.

    • Replace outer protective screen with the new part.

Conclusione

To reassemble your device, follow these instructions in reverse order.
