Nostalgia GCM200 Heating Bowl Replacement

Scritto Da: Xingdi Zhou
  • Commenti: 0
Nostalgia GCM200 Heating Bowl Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

10 minuti

Introduzione

This guide will show you how to replace the heating bowl.

  1. s4RmkfZ2rRrQjNQP
    s4RmkfZ2rRrQjNQP
    nk5LcHgpTGjeMmH6

    • Remove the two 1.3 mm Phillips #2 screws.

    • Remove the S6 spanner screw.

    • Carefully place these three screws somewhere safe to use later in reassembly.

  2. FUDqoPOHUgsC2VWk

    • Split the device in half to expose the internal parts of the device.

    • Again, there are two more Phillips screws to remove.

  3. OFfL2SEnaZKFsdJO

    • Remove the two screws from both sides of the heating coil.

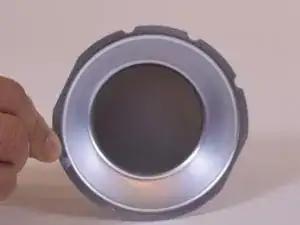

  4. o2PFd36knRoyhfPZ

    • Remove the heating bowl from the plastic housing.

Conclusione

Follow the instruction and you will know how to replace the bowl for this device
