Introduzione

Follow the steps in this guide to replace the broken microphone of your Oregon Scientific Meep! 4.0 tablet.

  1. 6A2ymCnNeRClZVFu

    • Use a screwdriver to remove the four 7.0 mm Philips #00 screws from the back of the device.

  2. Gdlk6mGRgd4c64m6

    • Use a plastic opening tool to detach the clips on the inside of the device.

  3. QONK5RGMPCYIWdMV

    • Use a screwdriver to remove the three 7.0 mm Philips #00 screws and unscrew the motherboard.

  4. ksVkv32qNy6TMbkI

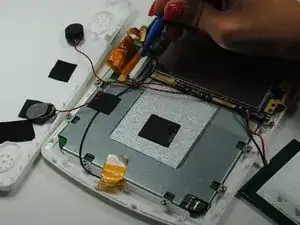

    • Use a plastic opening tool to release the three ribbon cables attached to the motherboard.

  5. cjDHHdvY4gY2shvo
    cjDHHdvY4gY2shvo
    UFDZLxmDwrYTxGas

    • Lift up the motherboard and use a soldering station to remove the microphone from its wires.

Conclusione

To reassemble your device, follow these instructions in reverse order.
