Otium Bluetooth Headphones Battery Replacement

Scritto Da: Geralt
  • Commenti: 0
Otium Bluetooth Headphones Battery Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

30 minuti - 1 ora

Introduzione

The Otium Bluetooth Headphones are rated for 500 charge cycles. If your headphones will not hold charge, or charge at all, you may need to replace the battery.

    • Power off your earbuds first.

    • Use a pry tool to unclip the cover of the left earbud.

  2. oFplmcJMWsd2O4Bx
    oFplmcJMWsd2O4Bx
    1wtDXQJcHVZ2xc4m

    • Carefully remove the battery from the housing.

    • The battery is connected by two fragile wires.

    • Shown is a 3.7v 100mAh Lithium Polymer (LiPo) battery.

  3. rH6Hb2HwdjUGCDxp
    rH6Hb2HwdjUGCDxp
    fJHDNaQenc3KshGS

    • Carefully peel back the rubber covering the protection circuit module (PCM).

    • Remove the cover and save to re-use.

    • The rubber is attached using Kapton tape and hot glue.

  4. QGJhHknOCdDPNnTk
    QGJhHknOCdDPNnTk
    bkqunJGDhUfEIlRs

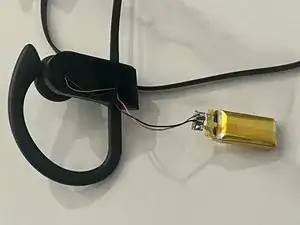

    • Bend the PCM away from the battery to make desoldering the 2 wires easier.

    • Use the soldering iron to desolder the 2 wires from the PCM. Adding a JST connector would make this repair much easier!

    • Recycle your old battery!

Conclusione

To reassemble your device, follow these instructions in reverse order.
