PSP 300x D-Pad Replacement

Scritto Da: mbnewsom

Commenti: 6

Difficoltà

Easy

Passi

Tempo Necessario

10 minuti

Introduzione

Steps for replacing malfunctioned directional pads in a Sony PSP-3000

Strumenti

Ricambi

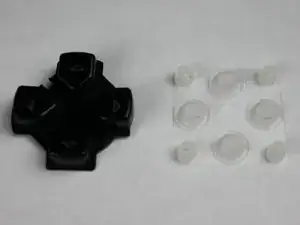

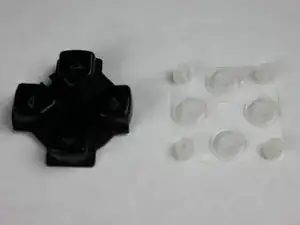

Sony PSP 3000 Button Set

Passo 1

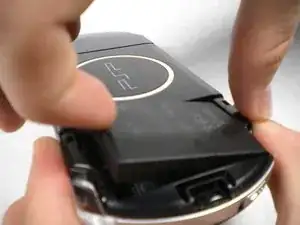

Place the PSP face down and locate the battery cover on the left side of the device.
Lift and remove the battery cover to reveal the battery.
Remove the battery.

Passo 2

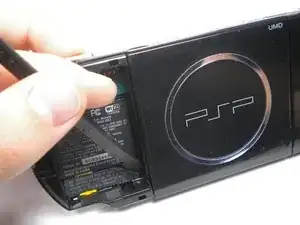

Peel back the warranty sticker that is behind the battery with a spudger or your fingernail.

This will end your warranty, so do it on your own risk!

Paweł Kasztura - 05/05/19

Even though warranties are long expired on these things.

Vincent C. - 01/04/20

“IF” your on this Site “I FIX IT(tm) to lean how to repair something on your own… you “Should NOT” be too concerned about warranty any longer, as if you were .. for your iPhone or Pad etc… you would have taken it to the supplier.. No??

Barry Goian - 26/10/20

Passo 3

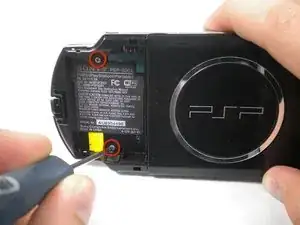

Unscrew all four screws from the back of the PSP with the Phillips #00 Screwdriver.
Two are located behind the battery's warranty sticker.
Two are located on the right side of the PSP.

Passo 4

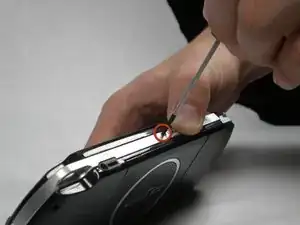

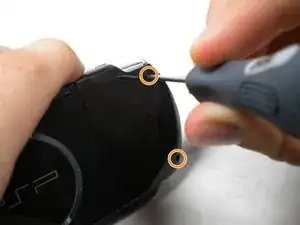

Next, unscrew the two screws located at the top of the PSP.

Passo 5

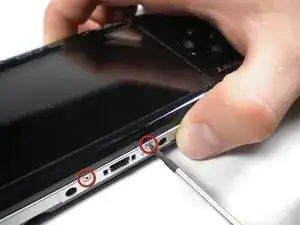

Then, remove the single screw from the bottom edge of the PSP (which is positioned next to the barcode).

“DON’T” forget to put your screws separately on a mag mat (Or sticky tape) so to 1) Not loose them & 2) Remember where they go as they may be of differing sizes. (Refer time the pictures also helps, but you can take a pic on your camera as you go to remind you also.

Barry Goian - 26/10/20

Passo 6

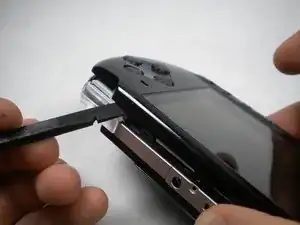

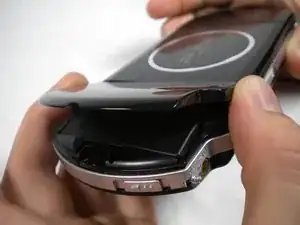

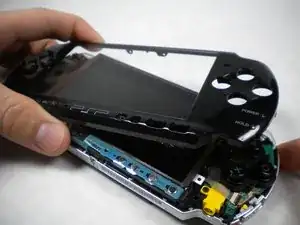

Slide the spudger in between the outer casing of the PSP, beginning at the "R" shoulder button, and gently pry off the casing. 
Remove the front casing completely.

J’ai récemment fait cette réparation et le boîtier avant ne voulait pas venir à condition d’enlever les deux vis sur le boîtier arrière au niveau du joystick et de la croix directionnelle. Il manque donc selon moi une partie mais je peux me tromper !

Valentin Boileau - 06/07/20
