PSP 300x Trigger Buttons Replacement

Scritto Da: cmcevill

Commenti: 8

Difficoltà

Easy

Passi

Tempo Necessario

15 minuti

Introduzione

Steps for replacing the trigger buttons for the Sony PSP-3000.

Strumenti

Ricambi

Passo 1

Place the PSP face down and locate the battery cover on the left side of the device.
Lift and remove the battery cover to reveal the battery.
Remove the battery.

Passo 2

Peel back the warranty sticker that is behind the battery with a spudger or your fingernail.

This will end your warranty, so do it on your own risk!

Paweł Kasztura - 05/05/19

Even though warranties are long expired on these things.

Vincent C. - 01/04/20

“IF” your on this Site “I FIX IT(tm) to lean how to repair something on your own… you “Should NOT” be too concerned about warranty any longer, as if you were .. for your iPhone or Pad etc… you would have taken it to the supplier.. No??

Barry Goian - 26/10/20

Passo 3

Unscrew all four screws from the back of the PSP with the Phillips #00 Screwdriver.
Two are located behind the battery's warranty sticker.
Two are located on the right side of the PSP.

Passo 4

Next, unscrew the two screws located at the top of the PSP.

Passo 5

Then, remove the single screw from the bottom edge of the PSP (which is positioned next to the barcode).

“DON’T” forget to put your screws separately on a mag mat (Or sticky tape) so to 1) Not loose them & 2) Remember where they go as they may be of differing sizes. (Refer time the pictures also helps, but you can take a pic on your camera as you go to remind you also.

Barry Goian - 26/10/20

Passo 6

Slide the spudger in between the outer casing of the PSP, beginning at the "R" shoulder button, and gently pry off the casing. 
Remove the front casing completely.

J’ai récemment fait cette réparation et le boîtier avant ne voulait pas venir à condition d’enlever les deux vis sur le boîtier arrière au niveau du joystick et de la croix directionnelle. Il manque donc selon moi une partie mais je peux me tromper !

Valentin Boileau - 06/07/20

Passo 7

Push the homebar to the right to release the tab located on the right side of the LCD screen.
DO NOT completely remove the homebar, as it is still connected by ribbon cables.

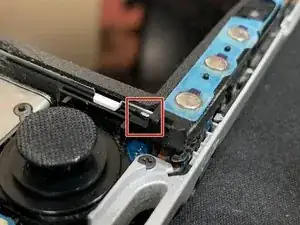

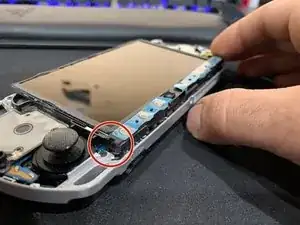

The homebar has a little tab screwed in place under the screw that alsoholds the lanyard trim-piece on. You will need to unscrew that screw first and pry the lanyard piece up, to get the homebar out from under it.

B McG -

Passo 8

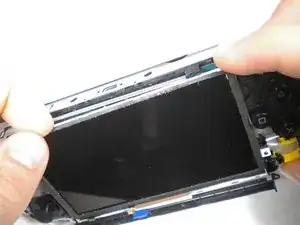

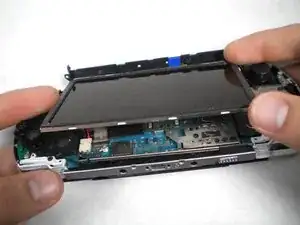

Slowly lift the LCD screen off the PSP starting at the top edge corner.
Again, the LCD screen is attached by ribbon cables, so do not remove it completely.
Orientation of PSP is flipped in photo.

Attention à cette partie où l’écran est un peu bloqué dans le coin inférieur droit, il faut donner un peu de jeu vers la gauche pour le décaler et le retirer plus facilement.

Valentin Boileau - 06/07/20

Passo 9

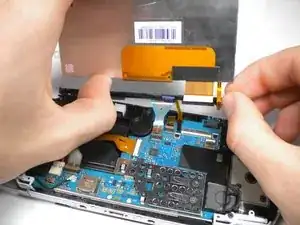

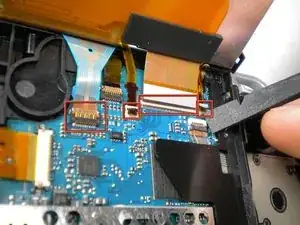

Flip the small brown locks on the four ribbon cable connectors up using a spudger or fingernail.
Pull all four ribbon cables out.
Now remove the LCD screen and homebar from the PSP.

For anyone struggling to get the screen’s smaller ribbon cable back in, don’t be too afraid to use tweezers to pull on the little tabs. It has to go in a good half way (of the darker area) in order for you to latch it without it falling back out.

Tom - 31/10/18

Passo 10

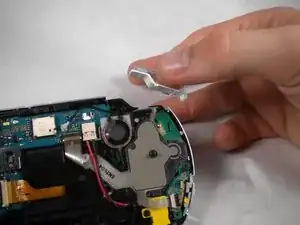

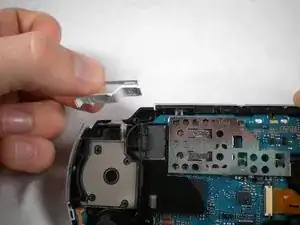

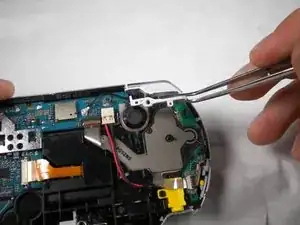

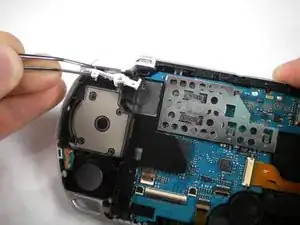

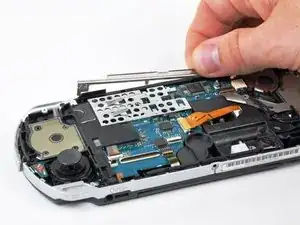

Remove the metal tab that lies above the LCD screen.
Upon reassembly, make note that the stamped lettering faces down, and the large tab fits just above the motherboard to the right hand side of the left trigger.
