Introduzione

This guide will show you have to remove the viewing screen from the front of the scanner if the screen breaks, or is no longer transparent.

  1. ORYlpAOVqByR5iRN

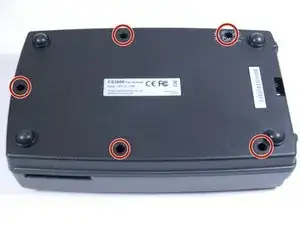

    • To start, open the device by removing the 5, 5mm x 9mm screws, with a J1 screwdriver.

  2. 4HR4UWk1By1MBWUJ

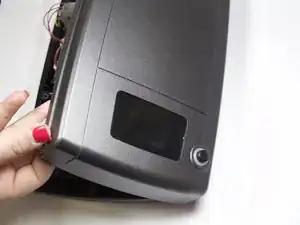

    • With light force, open the scanner at the seam.

  3. GSPMFh6XDuFMIViG
    GSPMFh6XDuFMIViG
    W1ePCIUs1jembUXh

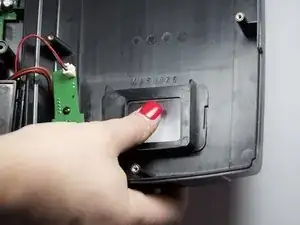

    • Push the screen away from the scanner from the inside with light force until it is no longer attached.

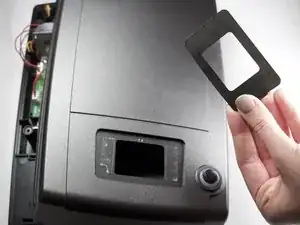

    • Replace with a new screen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
