Palm Treo 600 Front Case Replacement

Scritto Da: Michael Polka
  • Commenti: 0
Palm Treo 600 Front Case Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

2 minuti

Introduzione

After you have taken off the back case, the front case can also be removed to help you complete other teardown guides.

  1. obnTCBVjIWtTQTIZ

    • On the back of the device, locate the 3 rubber plugs, and use a plastic spudger to remove them.

  2. YAem6KvW6JpdEyP3
    YAem6KvW6JpdEyP3
    AloIJ1q3GPojNAxU

    • Use the T6 Torx Screwdriver to remove all 4 screws.

    • You have to first remove the Stylus to access the 4th screw.

  3. VIXJeTyoDDosj5KB
    VIXJeTyoDDosj5KB
    UFI6ndJ5KKRBCNdA

    • Using a plastic opening tool, carefully separate the front and back cases.

    • Note: The antenna will detach from the phone.

  4. BRBBQuNaJHTBdIUs
    BRBBQuNaJHTBdIUs
    ekCmuEAXoIMQgCXw

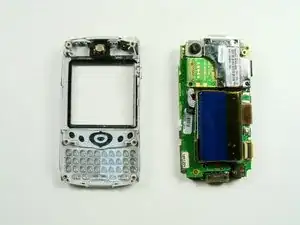

    • Using a T6 Torx Screwdriver, remove the two screws.

    • The motherboard will now be loose from the front case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
