Palm Treo 600 Speaker Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

5 minuti

Introduzione

Replace the speaker

  1. obnTCBVjIWtTQTIZ

    • On the back of the device, locate the 3 rubber plugs, and use a plastic spudger to remove them.

  2. YAem6KvW6JpdEyP3
    YAem6KvW6JpdEyP3
    AloIJ1q3GPojNAxU

    • Use the T6 Torx Screwdriver to remove all 4 screws.

    • You have to first remove the Stylus to access the 4th screw.

  3. VIXJeTyoDDosj5KB
    VIXJeTyoDDosj5KB
    UFI6ndJ5KKRBCNdA

    • Using a plastic opening tool, carefully separate the front and back cases.

    • Note: The antenna will detach from the phone.

  4. Z3dfE5opHGOOsXMk

    • Using the spudger, pull the speaker straight up.

  5. OtBkiN5qAsQhoQsf

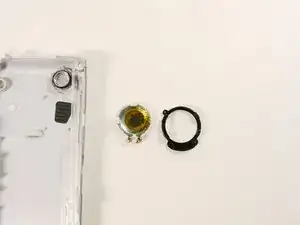

    • Gently pull the rubber coating off of the speaker.

Conclusione

To reassemble your device, follow these instructions in reverse order.
