Using this guide, a Panasonic HDC-TM15 owner will be able to remove the broken side cover of the camcorder and replace it with a new one.
Strumenti
-
-

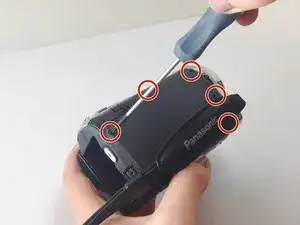

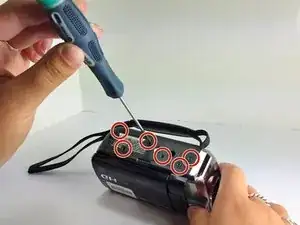

Using the Phillips #00 Screwdriver, unscrew the five .5 mm Phillips #00 screws on the hand-strap side of the camcorder.
-
-
-

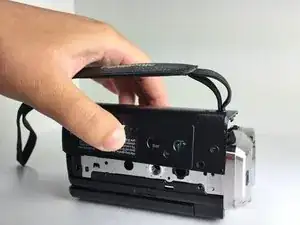

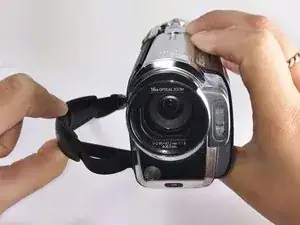

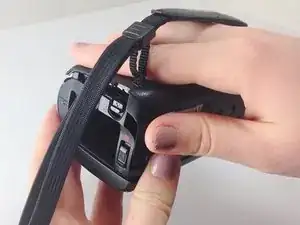

By putting your hand through the hand-strap, tug on the side cover until it comes off completely.
-
Once the old cover is completely detached, set it aside.
-

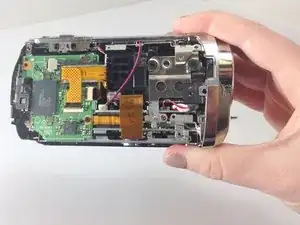

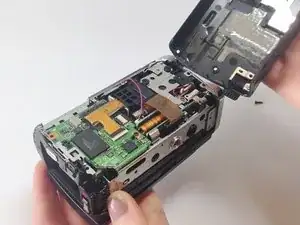

The inside of your camcorder should now be completely exposed, as seen in the photos.
-
-
-
Line up the new side cover in the exact same place, ensuring that the screw holes match.
-
Re-screw the side cover into place.
-
-
-

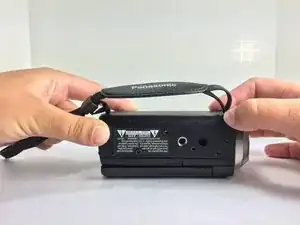

Gently tug on the hand-strap to ensure that the screws are tight and the side cover is secure.
-
When the side cover is securely fastened, you have completed the side cover replacement of your Panasonic HDC-TM15 camcorder.
-
To reassemble your device, follow these instructions in reverse order.
