Panasonic KX-E603 Case Replacement

Flip the typewriter to expose the bottom body panel.

Remove the three 19 mm screws located in the recessed holes on the edge of the black underside panel using a Phillips #2 screwdriver.

Flip the typewriter back to its original orientation, then rotate it so that the rear is facing towards you.

Remove the three 19 mm screws near the bottom of the tan body panel using a Phillips #2 screwdriver.

Open the typewriter lid and push the carriage away to expose the two screws holding the case to the chassis.

Remove the two 19 mm screws using a Phillips #2 screwdriver.

Flip the plastic lever on the right side of the roller wheel to disengage the paper lock.

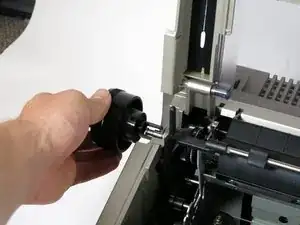

Remove the roller wheel adjustment knobs by pulling firmly outward.

Unlock the roller wheel by simultaneously pressing down on the two spring levers on the left and right of the roller ends.

While both spring levers are depressed, lift up with both hands to remove the roller wheel.

Flip the top down. Then, with both hands, lift straight up on the tan case to remove it from the chassis.
