Pentax Optio WG-3 GPS Shutter and Power Button Replacement

Scritto Da: Allison Merdian
  • Commenti: 0
Pentax Optio WG-3 GPS Shutter and Power Button Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

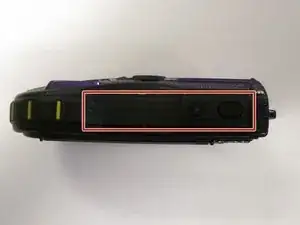

  1. OptDlCPICeh4FJuh

    • Peel the lining back on the top of the camera.

    • The lining is glued down to the device, you will have to peel the lining back using tweezers. After you are finished with your work you will have to use glue or adhesive to re-stick the lining back to the device.

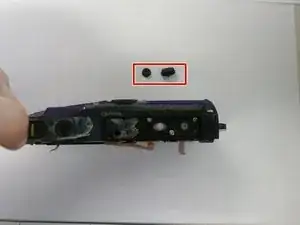

  2. MnmLxpgFLvHexxnG

    • Using tweezers pull straight up to remove the 2 rubber button toppers

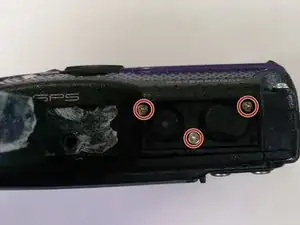

  3. dGNSAsKVNsYAUoh1

    • Remove the 3, 2 mm screws under the rubber buttons.

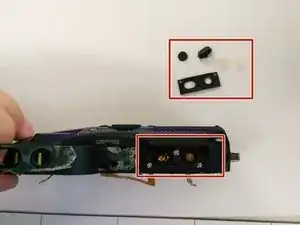

  4. cJ2SjU2E532Ul2oW

    • Replace the shutter/power button or button component.

Conclusione

To reassemble your device, follow these instructions in reverse order.
