Philips Norelco Shaver 2100 Casing Replacement

Scritto Da: Jose Moya
  • Commenti: 0
Philips Norelco Shaver 2100 Casing Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

10 - 15 minuti

Introduzione

This guide will show the steps required to open the shaver and replace the casing. Useful if you have an extra shaver.

  1. TSY3DbMDqMIGUPFd

    • Remove the single screw on the back casing using a T8 Torx screwdriver.

  2. QUHikUJjVQJZYGpT
    QUHikUJjVQJZYGpT
    HMblhCaiSICXXpnJ

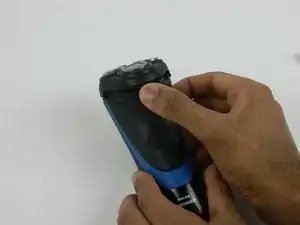

    • Turn the shaver so that it is facing you.

    • Press the button on the shaver head to open it.

  3. o6XS56VQuBwV6Dn1

    • Remove the two 10.1 mm screws inside the shaver head using a T8 Torx screwdriver.

  4. WfnBM6Q1G4JstCTQ
    WfnBM6Q1G4JstCTQ
    4vYHrPLwDbvlHk3e

    • Lift the shaver head off of the casing.

  5. 3IYacHWWZFqTCiM5
    3IYacHWWZFqTCiM5
    Ls3NjH1RUO4r2dNV
    YtGpLKttXb1LtVjB

    • Gently pull the black and blue casing apart using a metal spudger.

  6. i5U5ytDSLfnTgR4j
    i5U5ytDSLfnTgR4j
    POxIMeOWO5Kdw26N
    Jw1LKEARI2HvZQwX

    • Pry the remaining casing open using a metal spudger.

    • Be careful using a metal spudger, as it may result in damaging the case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
