PlayStation VR Processor Unit Thermal Pad / Fan Replacement

Scritto Da: Kalib Ellery
  • Commenti: 3
PlayStation VR Processor Unit Thermal Pad / Fan Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

10 minuti

Introduzione

This guide applies to the CUH-ZVR2 processor unit.

  1. Ye3ZdP3L5QdbFKCY
    Ye3ZdP3L5QdbFKCY
    jCEN5Ef3gQcjBykF

    • Place the PlayStation VR processor unit with the I/O (back) side facing up.

    • Peel the sticker up with a fingernail or a pry tool.

    • Remove the single J0 screw.

    • Place the screw in a parts tray to keep it organized.

  2. mU1sphABonorb6Qu
    mU1sphABonorb6Qu
    EUVhL2b1ICEQQLcQ
    tbhpmlMemZXymMdu

    • Use an opening tool to separate the bottom cover from the top.

  3. 2FdMFLPreW5atQyR
    2FdMFLPreW5atQyR
    Z56PtVd3cYCgXNTq
    GJIP2TXyPpRoLSs1

    • Remove the eight J0 screws.

    • Place the screws in the parts tray

    • Use your tweezers to disconnect the fan connector from the motherboard

    • If the fan needs to be replaced, stop here and follow in reverse.

    • Fan details.

    • Brand: Nidec

    • Model and dimensions: U35x05m 52aa7-56j14

    • Power: 5v and .18a

  4. xiOkuMFQaddhgVl3
    xiOkuMFQaddhgVl3
    oYUNbxAg6OGQ3ZIw
    MYwvYYRWsEl2AyK4

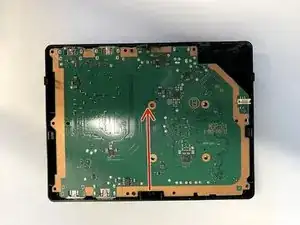

    • Use a spudger or a fingernail to lift the pcb in the direction highlighted

    • Gently separate the metal plate from pcb

    • Replace the thermal paste if needed.

    • Use a fingernail or a pry tool to see if the thermal pad is still soft. that means it still conducts heat. if hard, remove and replace the thermal pad

    Hi. I'd like you to be more specific on the thermal pad dimensions. I just find them pre-cut at local stores.

    Alex Largacha -

Conclusione

To reassemble your device, follow these instructions in reverse order.
