Dexter 300W Corded Delta Sander - 300DS2.5 Carbon Replacement

Scritto Da: Céline Chemineau
  • Commenti: 0
Dexter 300W Corded Delta Sander - 300DS2.5 Carbon Replacement

Difficoltà

Moderate

Passi

13

Tempo Necessario

5 minuti

Introduzione

This tutorial shows you the change of only one carbon, to change the second you just have to follow the same method.

  1. ClFWLRjIkYTPVrjY

    • Before you begin, remember to disconnect the mains plug.

  2. RWaXLXGGOyk4H6l3
    RWaXLXGGOyk4H6l3
    gHfyNgO5dQr3NIkV

    • Remove the three screws from the pad.

  3. DLWhhWY6sDPqaJCK
    DLWhhWY6sDPqaJCK
    TDoZNyArKahKLVEU
    sFDUqHXQoCTQ2gtD

    • Be careful to keep the three small marbles.

  4. UQeQu1Kdw6Ziuoh5
    UQeQu1Kdw6Ziuoh5
    VRBVGMGM1ycD2WVA

    • Unscrew the screws to open the shell.

  5. m5LpP6rLwagAeeTi

    • Remove the orange cap.

  6. Using a screwdriver lift the brushes.

    • Using a screwdriver lift the brushes.

  7. ckpWWBTXKAnYPj22
    ckpWWBTXKAnYPj22
    O415YYAGHKD6VFuE
    vlXSugUNFMQMQgQ4

    • Remove the carbon from its housing then take it out.

    • Using pliers, fold down the small tab.

  8. GTocQOAUehAXLoHR

    • Replace the new carbon in its carbon holder.

  9. Reconnect the carbon, test if the carbon slides well inside.

    • Reconnect the carbon, test if the carbon slides well inside.

  10. SbKHiR2fVFEoTPPH

    • Replace the coals in their housing.

  11. cOYmyFHGiAUMrS2L

    • Before closing, check that no cable is blocked and that each part is in its place.

    • Replace the screws on the hull.

  12. 3WYyEHfkrDnJf41d
    3WYyEHfkrDnJf41d
    D1EqcS2A1V6LHvAW
    ZT1cckP6MxSvb2oM

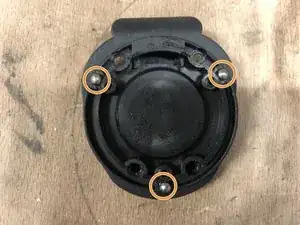

    • Replace the retaining flange, be careful to have the three small balls.

  13. 62MUU4jSOXXMxPJi
    62MUU4jSOXXMxPJi
    CUIunF2gWZW2OK6E

    • Tighten the three screws of the retaining plate then that of the pad.

Conclusione

To reassemble follow guide through or in reverse
