Power Mac G4 M5183 Logic Board Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

20 minuti

Introduzione

This guide will show you how to remove the PowerMac logic board.

  1. usapiMdDDBFeDDhd
    usapiMdDDBFeDDhd
    6j1Fmc6PY2u6c6GG

    • Pull on outer latch.

    • Lower door until it is level with your work surface.

    • Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

    Fino a li lo intuisce anche un bambino. Io volevo sapere come levare l'altro sportello senza rompere niente. Ma una vodtra risposta non la vedo.

    giorgus -

  2. QOLHeRfxfRQmVKas
    QOLHeRfxfRQmVKas
    TAai1lMKJn5gvEPO

    • Use the spudger to pry the clips horizontally off of the heat sink.

    • Fully remove the clips by lifting upwards.

  3. 2cUCB6MEnUNkI3KA

    • Remove the heat sink by pulling upwards, off of the logic board.

  4. hrRlynZQ6lHrnZEG
    hrRlynZQ6lHrnZEG
    wviLvVcUnuqtqesv

    • Locate the RAM modules.

    • Pull side tabs outward. The RAM will pop out of the housing.

  5. GHgl5YNFtLlp6EQu
    GHgl5YNFtLlp6EQu
    SA5rCasHaPHnyBNC

    • Remove the single screw with the Phillips #1 screwdriver.

    • Pull the graphics card up and out.

  6. AApROZdNtTPTBwwC
    AApROZdNtTPTBwwC
    xqokMERldrmQKKdk

    • Remove the six indicated cables attached to the logic board.

    • Use the spudger to remove the modem cable as indicated.

  7. FCkdyAvyhG6YhrhI
    FCkdyAvyhG6YhrhI
    CkMQP2RsWLEfVXoH

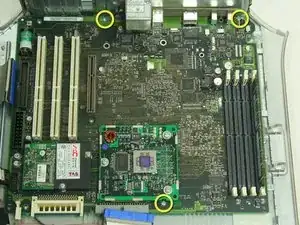

    • Unfasten 3 Phillips screws revealed beneath the heat sink on the CPU board.

    • Carefully remove the CPU board from the Mother Board.

    • Remove the barrell nut screws from the Mother Board which held the CPU board.

    • Unfasten 3 Phillips #1 screws on Mother Board as shown in illustration 1.

    • Slide the logic board about a quarter of an inch to free it from the three retaining pins.

    • Pull upwards and outwards to fully remove the logic board.

  8. IcpjNLOyEKpOcj4f

    • After removing the (3) #2 philips screws, remove the (4) 1/4" hex nuts, then slide as directed and remove board.
