PowerBook Duo 230 Disassembly

Scritto Da: Nils
  • Commenti: 3
PowerBook Duo 230 Disassembly

Difficoltà

Easy

Passi

5

Tempo Necessario

7 minuti

Introduzione

  1. QaiIjH5j3GlQkKYQ

    • Place the PowerBook Duo 230 on a clean table and prepare a Torx T8 screwdriver.

  2. 5sZFqZaS5UVEIOJH
    5sZFqZaS5UVEIOJH
    ARTE6iB2F4irOUqF
    ZZxBUXfQRTooHRnD

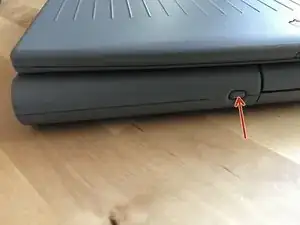

    • Push in the button as far as it will go.

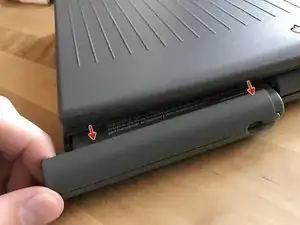

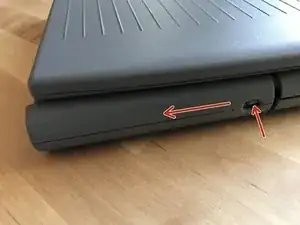

    • Press and hold the button then simultaneously slide the battery cover to the left.

    • For greater security, you can now remove the battery.

  3. teTDducWVCrn4sLS

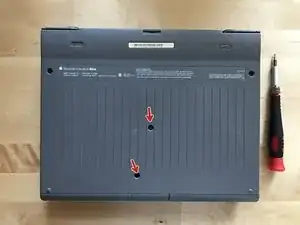

    • Loosen the 2 Torx screws.

    • The screws are the same.

    This is incorrect and will result in severe damage to the keyboard and chassis! Three screws must be removed. in the picture, the two screws at the top near the edges must be removed. Also the screw in the middle must be removed. These machines are 28 years old. We don’t need help directing us how to break them. Thanks alot.

    charriscville -

    Just backing up charriscville here, I just tried to open my PowerBook Duo 230 and followed these instructions which were obviously wrong!

    Thank you for pointing out the correct screws to remove (top 2 plus very middle)… but can we somehow have this article updated?

    Steven Hoefel -

    Hi @charriscville and Steven Hoefel!

    I’m sorry for this error and I will fix it. It’s happening a mistake while showing which screws.

    Hopefully you did recognise in time before damage something. I could make more guide because I disassembled this Mac more than one time and it still works and nothing is (fortunately) damaged)

    Have a great time and thank you!

    Nils

    Nils -

  4. L1gWIG1efHlMOh5Z
    L1gWIG1efHlMOh5Z
    5f6NoVWcjcBky2eG
    vsa25InAOe221qwU

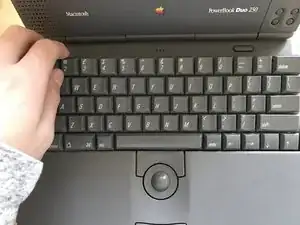

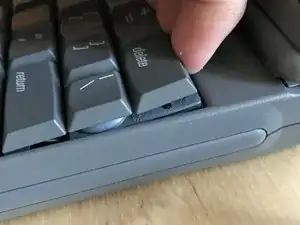

    • Turn your PowerBook over and open it.

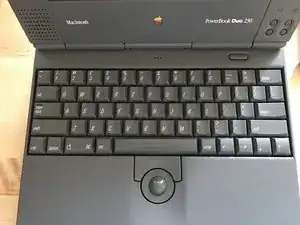

    • Now you have to lift up the keyboard. Lift the keyboard by the upper part.

  5. IRF24i2hLh4uAQfT
    IRF24i2hLh4uAQfT
    XNJPXHsPjrIabJTq
    RIJfZO3JGiEvDvAk

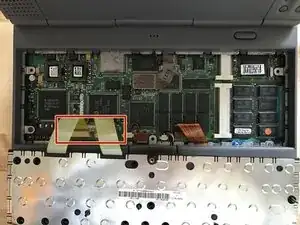

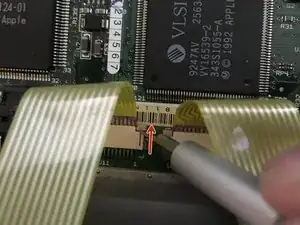

    • Disconnect the keyboard from the Logicboard.

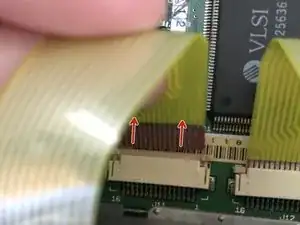

    • Now you need to move the small levers in every corner up. Be careful, small parts can break easily!

    • Gently pull out the flex cable.

Conclusione

Follow the steps in reverse order to reassemble your device.
