PowerBook G3 Pismo Modem Replacement

Scritto Da: iRobot
  • Commenti: 2
PowerBook G3 Pismo Modem Replacement

Difficoltà

Easy

Passi

16

Tempo Necessario

Nessuna stima

Introduzione

56k internal modem, standard on all models.

  1. 1LvSAqP1lHsbjn2A

    • Turn the keyboard locking screw so that it is parallel to the space bar.

    • Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.

    • Lift the keyboard out by pulling it up and away from you. Rest the keyboard, face down, on top of the track pad.

  2. OOxGGCT1cYLJrrIV

    • Pull the keyboard ribbon straight up from the logic board. Place the keyboard aside.

    • The connector may be tight. Gently rock the connector from side to side while pulling directly upward to free it. You can use this technique on many of the cards and cables you'll be disconnecting.

    • Make sure you have removed the laptop battery and CD/DVD modules from the expansion bays before proceeding.

  3. xXLqar4m52POFPI1

    • Your laptop should look approximately like this.

  4. RjbEC5iCcCOOfLbZ

    • Remove the two silver Phillips #1 screws that attach the heat shield to the internal metal framework.

    • Lift the heat shield up and pull it toward you.

    On my M7572, these are T9s not Philips.

    Rufleyboy -

  5. 1RNBn42uEKZlcVLO

    • Your laptop should look approximately like this.

  6. lCLeEKFXCoVRjQ1D

    • Skip this step if your computer does not have an Airport card installed.

    • Firmly grasp the plastic tab attached to the Airport card and pull up and then to the right.

    • The Airport card is still attached to the antenna cable, so don't just yank it out of the slot.

    On mine, the airport card had been put it with the orange ribbon OVER the top, so had to unplug the righthand connector and then plug it back in after (see pic for Step 8)

    Rufleyboy -

  7. hPnOXJZEDBBTHUAg

    • Disconnect the antenna cable from the Airport card.

  8. v1umCnQD2ayHYROJ

    • Pull the battery cable directly up from the logic board.

    • Remove the battery from its holder by pulling up and to the left.

  9. iRsOOnRspKjTCPCi

    • Your laptop should look approximately like this.

  10. JkWpBVo56At4Ejxu

    • Remove the long silver Phillips #1 screw from the heat sink.

    • Remove the two T8 Torx screws that attach the heat sink to the processor.

  11. BstZaZL2ZCaSSDH1

    • Lift the heat sink up from the left side and pull it out.

    • If you need to mount the heat sink back into the laptop, we have a thermal paste guide that makes replacing the thermal compound easy.

  12. iABbhXu1DLVqcHkA

    • Grasp the plastic tab on the processor's right side and pull it directly up.

    • Some processors may be missing the plastic pull tab. In this case, we suggest using a non-metal tool to gently pry up the processor. Slip the tool's thin edge under the front right corner of the processor and carefully pry it up.

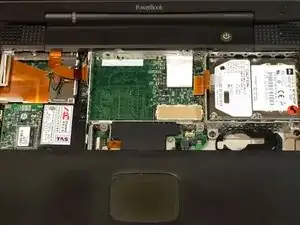

  13. qfUOSMWlUvnZYM3X

    • Your laptop should look approximately like this.

  14. D6umIYwqGBRMJPV5

    • Remove the black Torx screw from the right side of the modem.

    • Remove the small black plastic rectangle with four holes.

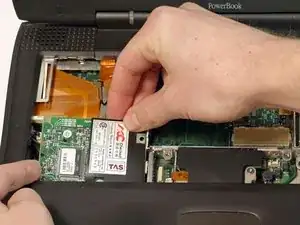

  15. GVweixJF4QUqNjSm

    • Use the tips of your fingers, a spudger, or a flat non-metal tool to get under the modem's edge and pry it up from its socket.

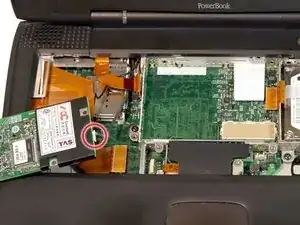

  16. NFXydLLodxD2ERAD

    • Disconnect the cable from the right side of the modem.

Conclusione

To reassemble your device, follow these instructions in reverse order.
