PowerBook G4 Aluminum 17" 1.67 GHz (High-Res) Optical Drive Replacement

Scritto Da: Walter Galan
  • Commenti: 6
PowerBook G4 Aluminum 17" 1.67 GHz (High-Res) Optical Drive Replacement

Difficoltà

Moderate

Passi

16

Tempo Necessario

Nessuna stima

Introduzione

Replace your optical drive to regain disk-reading ability.

  1. UIicFGjpFmhKthEX
    UIicFGjpFmhKthEX
    5tolrsUYAtgSUtwS

    • Use your thumbs to push the two battery retaining tabs away from the battery.

    • The battery should pop up enough to rotate it toward yourself and lift it out of the lower case.

  2. LhYBRZM4BxvdTnTv

    • Remove the three 2.3 mm Phillips screws securing the memory cover to the lower case.

  3. T5Jly2FAVmAMeZMq
    T5Jly2FAVmAMeZMq
    IkJluYEE2DWGDMpn

    • Lift the memory cover slightly and pull it toward yourself to remove it from the lower case.

  4. 6Z6iN26gl6HqikqC

    • Remove the following ten screws:

    • Two 14.7 mm shouldered Phillips.

    • Three 12.3 mm Phillips.

    • One 3.8 mm T8 Torx.

    • One 6.8 mm T8 Torx.

    • Three 1.3 mm Phillips.

  5. WhtAsIeIXgQf2saB
    WhtAsIeIXgQf2saB
    CkYSbqSDXS5GwgB5

    • The ZIF cable is located underneath the bottom RAM slot. If your PowerBook has both RAM slots occupied, make sure to remove the RAM chip.

    • Use your fingernails to separate the ZIF cable lock away from its socket. (Move the two brown bits down 1mm)

    • The ZIF cable lock will move about a millimeter away from the socket before it stops (see picture 2). Do not try to remove the ZIF cable lock.

    The ZIF cable locks are the little grey pieces seen on the cable-side ends of the white bar. They will slide, as per detailed picture, toward the cable.

    web -

    Where could I get a whole replacement for this connector ? Mine came off the motherboard

    Ruben De La Cruz -

  6. L1gT5A5dR5sFYY3m

    • Use the tip of a spudger to slide the trackpad ribbon cable out of its socket.

  7. HFHVLbUMusMRgfCR

    • Remove the four 3.4 mm Phillips screws from the PC card side of the PowerBook.

    • When replacing these screws, you must reinstall each screw in the correct order. Begin by installing the screw closest to the display hinge, and go out from there.

  8. okUAwPRMRmfTblNR

    • Remove the four 3.4 mm Phillips screws from the DVI connector side of the PowerBook.

    • When replacing these screws, you must reinstall each screw in the correct order. Begin by installing the screw closest to the display hinge, and go out from there.

    • During reassembly, make sure to reinstall the two screws on the right into their appropriate locations, and not the DVI port anchor holes.

  9. YaQ2IrVcgcv4CKwD
    YaQ2IrVcgcv4CKwD
    mWHSgMljSGCAfPGe

    • Depress the display latch release button and open your display.

  10. aER1QIEnJOMGkO4B
    aER1QIEnJOMGkO4B
    LeEqtnJoUWhbbQji

    • Starting near the display, lift the upper case straight up off the lower case, minding any cables that may get caught.

    Sometimes the "tags"/"lugs" that are around the edge of the top & bottom frame, be careful not to bend them as when putting back the covers they will not merge. I used a screwdriver to poke through the hole the screw was supposed go in & push against the "inside nut" to let the tag from the top slide down between the 2 tags. The "inside nut" is like the one right next to the ribbon cable as shown in Dia.14. The screws are from Dia. 7&8.

    harry allcock -

    in what direction does one move the ZIF cable lock? what/where is its socket?

    Ian -

    When putting the machine back together (following steps in reverse), make sure the trackpad ribbon cable comes through the underside of the computer — there is an opening that the cable needs to go through and you will want to “thread the needle” with the cable before securing the upper case again.

    Tim -

    At the end of these instructions, Jimbo Combo also mentions this, but it should be repeated.

    Because the trackpad/keyboard cable is part of the top face/keyboard/trackpad assembly, it’s actually a PITA when doing reassembly.

    One way to make this step simple is to do the following:

    1. straighten the Zif cable removing all of the bends that is probably has in it.

    2. Start putting the top face/keyboard/trackpad assembly on, starting with the edge AWAY from the display.

    3. Place the laptop on it’s side, and thread the cable through the opening, using tweezers if necessary so that it fully goes through the opening in the case.

    4. Place the laptop back to the way it was and proceed.

    ECJohansen -

  11. mOZJicHX2lWxgnKa

    • Use the flat end of a spudger to pry the optical drive cable connector up off the logic board.

  12. bVvqkQa5CCaCD4DC

    • Remove the following four screws securing the optical drive to the lower case:

    • Three 6.8 mm T8 Torx.

    • One 3.8 mm T8 Torx.

  13. njByt6hyLjieeXJS

    • Lift the optical drive out of the lower case, being careful not to disturb the PRAM battery & USB board ribbon cable.

  14. rWGrAfj1KtrJsjUn

    • Use the flat end of a spudger to separate the optical drive connector from the optical drive.

    • If necessary, pull the optical drive cable away from the optical drive.

  15. MNdUlbDmLG1VnPUF
    MNdUlbDmLG1VnPUF
    TKvFUQnEWyZfOTSQ

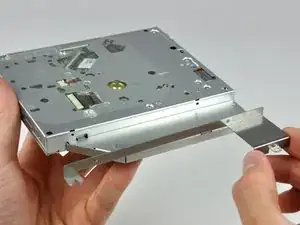

    • Remove the two Phillips screws holding the optical drive bracket to the side of the optical drive.

    • Pull the optical drive bracket away from the thin side of the optical drive.

  16. Z4GpviPSWeRaHEpX
    Z4GpviPSWeRaHEpX
    TBBNDTtCpKYVWg3b

    • Remove the two Phillips screws securing the flat optical drive bracket to the side of the optical drive.

    • Remove the optical drive bracket.

    • If you have a disk or anything else stuck inside your optical drive, we have a guide to fix it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
