PowerMac G4 M5183 Graphics Card Removal

Scritto Da: Justin Petrilli
  • Commenti: 3
PowerMac G4 M5183 Graphics Card Removal

Difficoltà

Easy

Passi

2

Tempo Necessario

10 minuti

Introduzione

Removing the graphics card.

  1. usapiMdDDBFeDDhd
    usapiMdDDBFeDDhd
    6j1Fmc6PY2u6c6GG

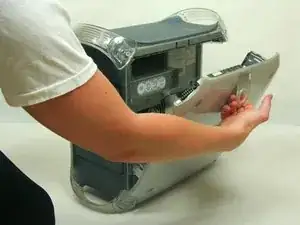

    • Pull on outer latch.

    • Lower door until it is level with your work surface.

    • Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

    Fino a li lo intuisce anche un bambino. Io volevo sapere come levare l'altro sportello senza rompere niente. Ma una vodtra risposta non la vedo.

    giorgus -

  2. GHgl5YNFtLlp6EQu
    GHgl5YNFtLlp6EQu
    SA5rCasHaPHnyBNC

    • Remove the single screw with the Phillips #1 screwdriver.

    • Pull the graphics card up and out.
