Razer Phone Display Assembly Replacement

Scritto Da: Sebastian Barragan
  • Commenti: 19
Razer Phone Display Assembly Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

20 minuti

Introduzione

Is your Razer Phone's touch screen unresponsive, cracked, or not displaying properly? If so, here is the guide to replacing the display assembly containing the glass touch screen, the digitizer, and LCD screen. The tools you need are a #000 Phillips screw driver, a Torx head T5, tweezers, metal spudger and Jimmy.

  1. UHmbEJTDN2OLfWs3
    UHmbEJTDN2OLfWs3
    u1xtOwggObEMIAuM
    YJGuxIfmDN63eHJa

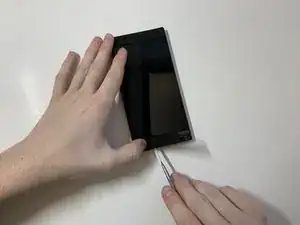

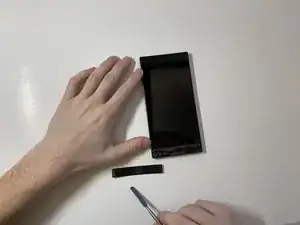

    • Remove the plastic speaker grills by using the metal spudger to pry underneath the strips.

    • Peel off the plastic speaker grill to reveal the screws.

    • Heating up the plastic grills make them easier to remove.

    • Peeling off the plastic speaker grill will ruin the adhesive used to keep it in place. A new adhesive must be used to put the grill back on the device.

    Double sided tape can be used to adhere the grills in place.

    Lucano -

    How to make the Another adhesive??? Plz rply

    My razed Phone Speaker grills can't put again Perfectly

    Ferdi Pongbubun -

    Where can i find a Charging Connector for Razer Phone 2 to buy….becouse the only place i când find IT is in India and they only delyver to

    curteanuice13 -

  2. H14TwgyqMIkJmnDX
    H14TwgyqMIkJmnDX
    BkDNN5kKyRSldTnN

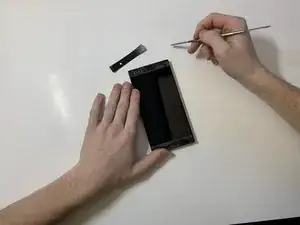

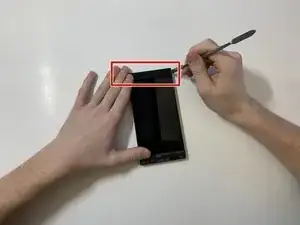

    • Pry the top plastic grill off with the metal spudger and reveal the screws.

  3. FFYYjPyDbPq1XdZJ
    FFYYjPyDbPq1XdZJ
    QyYAxMTteSFoIuUj
    3EEnv6vZHOU1MwwI

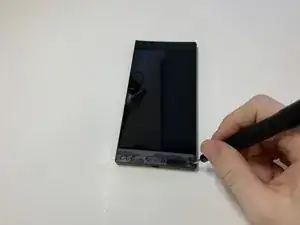

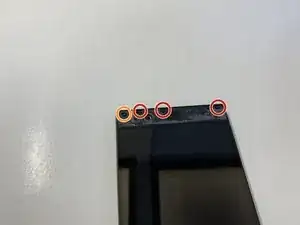

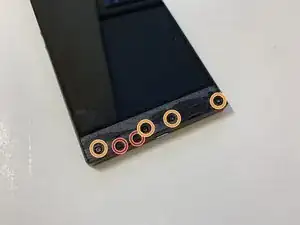

    • Remove five (two bottom, three top) 2.5 mm screws with the Phillips #000 screwdriver.

    • Remove five (four bottom, one top) 5.5 mm screws with the Torx Head T5 screwdriver.

  4. kcwmZhNLNg6vWoam
    kcwmZhNLNg6vWoam
    xsVG5oZj6x6Pbt1Y

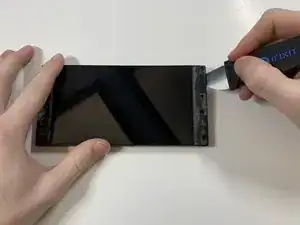

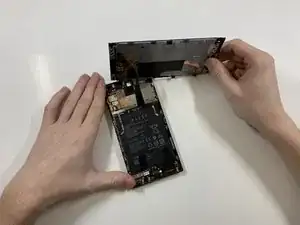

    • Remove the display assembly by using the Jimmy to separate the assembly from the phone's frame.

    • Lift the display assembly away from the other half of the phone.

  5. 1XCCgfH2iSyUxOI6
    1XCCgfH2iSyUxOI6
    Y4juEudwmO43TcqZ
    reHbXBVY5VddEVBk

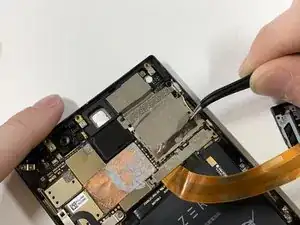

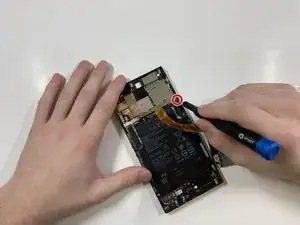

    • Remove one 2.5 mm screw holding down the metal bracket connector using the Phillips #000 screwdriver.

    • Peel back the metallic shielding over the connector using tweezers.

    • Remove the metal bracket connector.

    Hi you got any screen for sale thanks

    anwarhussain21786 -

  6. tasuVE43LOrXjn2I
    tasuVE43LOrXjn2I
    ed6WKXEFH2uA2upy

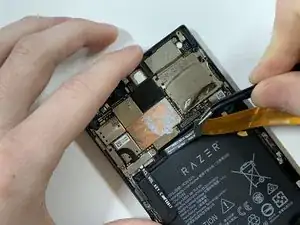

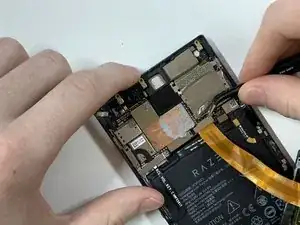

    • Grab hold of the the screen ribbon with the tweezers and remove it from the rest of the phone to free the assembly display.

    I would highly recommend avoid using metal tweezers for this step.

    Otherwise, be EXTREMELY careful with them when near the contacts around the ribbon cable.

    With the battery still plugged in, trying to unplug the ribbon connector of the screen with a metal tool will cause shorts between the tiny contacts.

    John Li -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Sebastian Barragan

Membro da: 24/01/19

435 Reputazione

14 commenti

“Peeling off the plastic speaker grill will ruin the adhesive used to keep it in place. A new adhesive must be used to put the grill back on the device.”

Any suggestions on what adhesive to use to replace the plastic speaker grills?

Vincent -

Double sided tape.

Lucano -

Sir, where can I order Razer Phone 1 LCD Assembly?

baby_zhent17 -

Search on eBay. Phones are often parted out there.

Lucano -

I almost forgot; when searching, your Razer Phone's model number is RZ35-0215, code name: Cheryl.

Lucano -

hello I need the display of razer phone rz0215 and I can not find for purchase, could you give me a help, any sale link?

Mineiro pires -

Search on eBay. Phones are often parted out there. The prices are a bit high when considering the cost of the whole phone, but it's rare to see parts elsewhere, and you won't find a better price anyway.

Lucano -

I'm in search for the top speaker grill, and i don't find anything on internet … any idea where to buy it?

baptiste -

Search for them on eBay.

Lucano -

You could get the grills 3D printed:

https://www.thingiverse.com/thing:304908...

I too am searching for a display assembly though, my digitizer has stopped working.

Colum Mckenna -

The screen assembly can often be found on eBay. The price is a bit high, but trying to disassemble the thing in order to replace the $20 (USD) touch digitizer within is a monster of a task.

Also, being simple plastic, the grills could easily be fabricated from a number of household disposables. You could even choose a color other than black to add a bit of customization to your phone.

Lucano -

Well to me it seems pretty obvious that these phones suck they break easy I've only had mine for a year. Then the new one came out razr2 and then my screen started acting crazy freezing up not responding then the charging started not working right I hate it that was $700 down the drain but thanks for the insight on how to fix the screen

No offense to you man thanks for the help serious.

dnanewton1222 -

That's what happens when you don’t have your phone in a case and drop it. You broke the touch digitizer within the screen assembly.

Lucano -

The Razer Phone 2 troubleshooting link to this tutorial. I didn't need to replace the screen and digitizer before, but I do now because this tutorial caused me to break them.

The RP2 does not have screws on the front. Jimmying and prying the front open will instead crack and/or shatter the screen and digitizer. Now, instead of just a cheap USB-C replacement, I have to dish out somewhere between $70 and $200 for a much-harder-to-find set of digitizer and glass.

To my fellow RP2 fans: you're supposed to start with the back, not the front.

Noah Sherwin -
