Razer Phone Earpiece Speaker Replacement

Scritto Da: Guneet Kohli
  • Commenti: 21
Razer Phone Earpiece Speaker Replacement

Difficoltà

Moderate

Passi

29

Tempo Necessario

1 - 2 ore

Introduzione

Is your Razer Phone's speaker blown? If so, here is the guide to replacing it.

  1. UHmbEJTDN2OLfWs3
    UHmbEJTDN2OLfWs3
    u1xtOwggObEMIAuM
    YJGuxIfmDN63eHJa

    • Remove the plastic speaker grills by using the metal spudger to pry underneath the strips.

    • Peel off the plastic speaker grill to reveal the screws.

    • Heating up the plastic grills make them easier to remove.

    • Peeling off the plastic speaker grill will ruin the adhesive used to keep it in place. A new adhesive must be used to put the grill back on the device.

    Double sided tape can be used to adhere the grills in place.

    Lucano -

    How to make the Another adhesive??? Plz rply

    My razed Phone Speaker grills can't put again Perfectly

    Ferdi Pongbubun -

    Where can i find a Charging Connector for Razer Phone 2 to buy….becouse the only place i când find IT is in India and they only delyver to

    curteanuice13 -

  2. H14TwgyqMIkJmnDX
    H14TwgyqMIkJmnDX
    BkDNN5kKyRSldTnN

    • Pry the top plastic grill off with the metal spudger and reveal the screws.

  3. FFYYjPyDbPq1XdZJ
    FFYYjPyDbPq1XdZJ
    QyYAxMTteSFoIuUj
    3EEnv6vZHOU1MwwI

    • Remove five (two bottom, three top) 2.5 mm screws with the Phillips #000 screwdriver.

    • Remove five (four bottom, one top) 5.5 mm screws with the Torx Head T5 screwdriver.

  4. kcwmZhNLNg6vWoam
    kcwmZhNLNg6vWoam
    xsVG5oZj6x6Pbt1Y

    • Remove the display assembly by using the Jimmy to separate the assembly from the phone's frame.

    • Lift the display assembly away from the other half of the phone.

  5. 1XCCgfH2iSyUxOI6
    1XCCgfH2iSyUxOI6
    Y4juEudwmO43TcqZ
    reHbXBVY5VddEVBk

    • Remove one 2.5 mm screw holding down the metal bracket connector using the Phillips #000 screwdriver.

    • Peel back the metallic shielding over the connector using tweezers.

    • Remove the metal bracket connector.

    Hi you got any screen for sale thanks

    anwarhussain21786 -

  6. tasuVE43LOrXjn2I
    tasuVE43LOrXjn2I
    ed6WKXEFH2uA2upy

    • Grab hold of the the screen ribbon with the tweezers and remove it from the rest of the phone to free the assembly display.

    I would highly recommend avoid using metal tweezers for this step.

    Otherwise, be EXTREMELY careful with them when near the contacts around the ribbon cable.

    With the battery still plugged in, trying to unplug the ribbon connector of the screen with a metal tool will cause shorts between the tiny contacts.

    John Li -

  7. vXlZX43Orgn5toc1
    vXlZX43Orgn5toc1
    GISVkm6S3UnDnHMZ
    AxKpLX6SfwdBHdjS

    • Grab hold of the connector on the right side of the phone (just above the battery) using the tweezers.

    • Remove the connector.

  8. aQh6CGAQVy6yk4oh
    aQh6CGAQVy6yk4oh
    tteNHDomSD41gGpF

    • Remove the 2.5 mm screw holding down the bracket with a Phillips #000 screwdriver.

    • Grab the bracket with the tweezers and remove it.

    Careful.

    There's actually 2 screws you need to remove with this step before you can remove the bracket..

    John Li -

  9. VlqHdj4inUgNZoKG
    VlqHdj4inUgNZoKG
    euYCMEMALhuZbGDc
    rjOflBATp4HmiMea

    • Peel off and pull out the elastic tabs at the bottom of the battery.

    It isn’t necessary to remove the battery.

    Lucano -

  10. tisNMDmoYGMOQNpQ
    tisNMDmoYGMOQNpQ
    YjDjvKDBdakkDRsd

    • Carefully use the Jimmy to wedge the battery out of the phone.

    It isn’t necessary to remove the battery

    Lucano -

    Thank you very much.

    familykeepers.ca -

    battery razer phone 1 and 2 is the same type?

    my phone is razer phone 1, and only see online shop selling the battery for razer phone 2

    Alpha Jon -

    Where I can get the design specs for the razer phone 1 battery? I think they are not producing it anymore…

    h_yilei -

    It is 376989 in size I brought a 396787 but without the BMS board specs still cannot fix it.

    And also what is the Panasonic 777156? It has 6 pins under it, it seems not like a capacitor and cannot find replacement on digi-key.

    h_yilei -

    I used this guide to replace my battery for my Razer 2 phone and the front speaker grills have no screws at all. Had to access the battery from behind the phone. So apparently I have a different version of Razer 2 phone. So followed another guide and replaced the battery. Unfortunately, I had to deal with the speaker grills.

    Nick T -

  11. mvsGnVnlcSqBjOPC
    mvsGnVnlcSqBjOPC
    brYmPTPfygLhTCgg

    • Using a Phillips #000 screwdriver, take out the seven 1 mm screws on the bottom panel of the device.

    • There are a few gold brackets under some of the screws. Make sure to remove these and keep them for reassembly.

    This step isn’t necessary.

    Lucano -

  12. Ie1SyrnGQjih22xE
    Ie1SyrnGQjih22xE
    olrpvYZJnqDABBdh

    • Grab hold of the blue connector on the upper left side of the phone with the tweezers.

    • Remove the connector.

    It isn’t necessary to peel the ribbon from the casing.

    Lucano -

  13. nQ1qJXucGWj5vqDh
    nQ1qJXucGWj5vqDh
    yxCDZeQYehRZmTJQ

    • Use the tweezers to grab hold of the connector for the blue wire (bottom of the device), and remove the connector.

    • Use the tweezers to grab hold of the connector for the white wire, and remove the connector.

    This step isn’t necessary.

    Lucano -

  14. e1ooXLB1oOqyF4TH

    • Using the tweezers, grab the detached charging port and ribbon.

    This step isn’t necessary.

    Lucano -

  15. AiYUOUXOFd24esM4
    AiYUOUXOFd24esM4
    6nM4y6S3mEO6TyEt

    • Remove the one 2.5 mm screw with the Phillips #000 screwdriver.

  16. 1BWyrIOHLtGS1Bnm
    1BWyrIOHLtGS1Bnm
    MXbQBULZDNTGTd4b
    mSEmgtdMlKPQCtUf

    • Remove the protective peel covering the rear cameras using your hands.

  17. SpSIrIFPaNuKkyBI

    • Use the tweezers to remove the white tab connector.

  18. u6XIeMsBIwecHBey

    • Grab and remove the metal tab with the tweezers.

  19. RCioXWZdgHmM2eoe
    RCioXWZdgHmM2eoe
    Y1DqHlyDdSfYi1wn
    YtbipDM1CmmvWLC4

    • Grab the connectors with the tweezers and gently lift the connectors loose.

    It is only necessary to remove the left connector tab to reveal the screw beneath.

    Lucano -

  20. Wpk4KvcACx1jyHro
    Wpk4KvcACx1jyHro
    JTSYXHTolWhllG6V

    • Remove the one 2.5 mm screw with the Phillips #000 screwdriver.

  21. Dl1Ld1P2OEw6cZ1Q

    • Remove the one 2.5 mm screw underneath the connectors with the Phillips #000 screwdriver.

  22. bKEkSbHMpsdLC4kI
    bKEkSbHMpsdLC4kI
    biJQfDvjFUKZsbOX
    3KdB2uPHRKdgM1YQ

    • Grab the loose connectors with a tweezer and gently remove the rear camera unit from the phone.

    This step isn’t necessary.

    Lucano -

  23. GKPYeMCIY2Y5Pb2o

    • Grab and remove the blue connector with the tweezers.

    If you remember, this was done in step 12.

    Lucano -

  24. BtJPgkeGHqiIVHfN
    BtJPgkeGHqiIVHfN
    JUOHQXH4vGkCMrmu

    • Remove the five 1 mm screws holding down the gold antenna line brackets to the motherboard using the Phillips #000 screwdriver.

  25. CGyqpN2Mq3dMWsbP
    CGyqpN2Mq3dMWsbP
    ASPHwsyYPTYBDRTM

    • Remove the 2.5 mm screw next to the front-facing camera with the Phillips #000 screwdriver.

  26. rSa5wuDAJDCJyNQv
    rSa5wuDAJDCJyNQv
    xCQWaEGFYMkmvlLF

    • Remove the four gold antenna line brackets with the tweezers.

  27. IWAQI4nuMixMDaY1

    • Using the tweezers remove the SIM card tray from the body of the phone.

  28. aYrF4AMbFSQSBNxR

    • Carefully lift up the motherboard away from the device.

  29. jFpvPGW1jFYZvQcq
    jFpvPGW1jFYZvQcq
    JOHcWACOTPZMaZDn

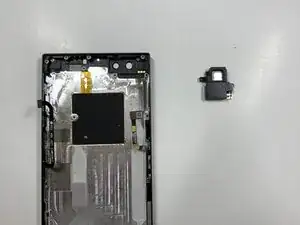

    • Lift earpiece speaker up with the tweezers.

Conclusione

To reassemble your device, follow these instructions in reverse order.
