Replacing the hard drive of the HP 15-bs015dx laptop

Scritto Da: Marcos Mora
  • Commenti: 13
Replacing the hard drive of the HP 15-bs015dx laptop

Difficoltà

Moderate

Passi

9

Tempo Necessario

20 minuti

Introduzione

I am teaching you how to repair the hard drive of the HP 15-bs015dx laptop. You can consult a more complete disassembly guide on my profile

  1. WrupPKtSrWKdcxhZ
    WrupPKtSrWKdcxhZ
    BvNOFNysAl3EBy1I
    O3DKoCRMaA1FIAYu

    • Put the laptop facing down

    • Move the left battery safe lock to the right

  2. ZSjSFwmN6l4b2USZ
    ZSjSFwmN6l4b2USZ
    ZPBCQan1GuOid1OO
    Uq2vEdIDt1DAGXWs

    • Slide the right battery safe lock to the left

    • This lock is harder than the previous, with this the battery should pop-up.

  3. dF1NktpaQYHELW64
    dF1NktpaQYHELW64
    MoTNtYZYAxmc6WOe
    HJNXNDhbMSsdOOwl

    • Use a Philips 0 screwdriver

  4. yCrpQhI2KwLC2jr1
    yCrpQhI2KwLC2jr1
    u2MmvZMpLdqGUAVm
    QN2fpQDrxeQlGHeA

    • Use a straw to take off just enough of the rubber feet of the 4 corners

    • Use a Phillips screwdriver 0

    • Replace each rubber foot in place after removing the screws

    • You will have a total of 10 screws

  5. YPLYrZ3JTG2wvhW6
    YPLYrZ3JTG2wvhW6
    Ik3RDeWM11icNxgA

    • It will go out easily with or without a straw

    • You can check the model number

  6. opHejxT6NVqnDpSB
    opHejxT6NVqnDpSB
    hXEMvJXoPufi5Dhq
    KhZLqbY145IGEIBB

    • Flip the laptop and open it

    • Use a plastic tool or a straw to separate the pieces of the chassis

  7. 6FYNPCKMpOkMepo3
    6FYNPCKMpOkMepo3
    FDRpolOCOoQmLxrb
    NB5UUIkPl5rVIhVx

    • Flip the laptop and separate the inferior cover of the chassis

    • Hard Drive 2.5" SATA

    • 2 RAM memory slots type DDR4 SO-DIMM

    • CPU Intel 7th generation

    • Active heat sink (fan)

    • Wireless card

    • Watch battery, 3V. CR2030

    Se puede sacar su procesador?

    johanluisos.com -

    No. En este caso, el CPU es un core i5-7200u, el cual usa un zócalo tipo BGA, es decir, usa soldadura para pegarse a la placa base.

    Marcos Mora -

    Any info on how to swap out a non-backlit keyboard for a backlit keyboard for the 15-bs015DX? Thanks.

    David -

    In this case, it looks like the whole plastic around the keyboard comes with it.

    I can't be sure, since I no longer have the laptop. Try to disassemble it and look if they sell a drop-in keyboard replacement

    Marcos Mora -

    What type of m.2 it support, and what type of m.2 socket it have. Thank you.

    Hocine Gasmi -

    M.2 SATA-3. But I don't see a space to put on the m.2 screw. I recommend you open it up and double check.

    Marcos Mora -

  8. 4JWqEEhkNwnDqhaL
    4JWqEEhkNwnDqhaL
    6cdTRYXymVUlu4L4
    XxBxnURD4lwHVUAy

    • 3 screws

    • Use a Phillips 0 screwdriver

    • Remove the frame

    You don’t really need to remove the 2 black screws at this point. Once you remove the silver screw the hard drive and the frame will lift out. If you’re swapping the drive you will need to move the bracket to the new drive.

    ADAM MORRISON -

  9. tPJDS42UHBTNUecb
    tPJDS42UHBTNUecb
    qiqwtVn5lAt1iCw4
    1jYbHLIYQnCYUryO

    • Tilt the hard drive up

    • Disconnect the hard drive from its SATA port

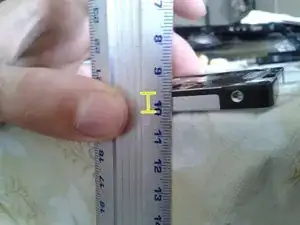

    • The hard drive is 7mm high. 1TB capacity.

Conclusione

For re-assembly of your device, follow these instructions in reverse.

Autore

Marcos Mora

Membro da: 17/12/17

3561 Reputazione

6 commenti

Disculpa, yo tengo esta laptop, mi hard drive hdd se estropeó y quisiera cambiarlo por un ssd, sin embargo no se que tipo de ssd necesito, si eres tan amable de aclararme mi duda, se agradecería.

el_kevinsillo.777 -

Saludos. Te toca comprar un SSD tipo SATA. Puedes revisar mi perfil, ahí tengo mis RRSS y me puede contactar.

Marcos Mora -

Great but how do you get the software to reinstall on the new hard drive?

Jared Brice -

That would require a whole new guide. I have some of those on my YouTube channel, link in my ifixit profile.

Bottom line: A flash drive with a Windows installer on it.

Marcos Mora -

Follow this POS guide and you WILL break the 4 mounting tabs for the hinges as NOTHING was mentioned about the 4 screws holding them down!

Mochanic -

If you're referring to the screen holding hinges. This guide was never intended to replace the screen.

It's not required to unscrew the hinges to get to the hard drive, at all.

Marcos Mora -
