Removing the Apple Cinema Display M8149 Display Hinge

Scritto Da: Thomas Harper
  • Commenti: 1
Removing the Apple Cinema Display M8149 Display Hinge

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

This guide will explain how to remove the display hinge. The tools required for this section are the spudger and the PH 2 screwdriver.

  1. D1NbfFv4QGkZIPAo
    D1NbfFv4QGkZIPAo
    rDgrxvGlmcUTdKss
    v1PjYPQAJKAcePjB

    • Before starting, make sure the display is UNPLUGGED. Failure to do so can result in shock and serious injury.

    • Flip the Cinema Display so it is on its face and the feet are pointed away from you.

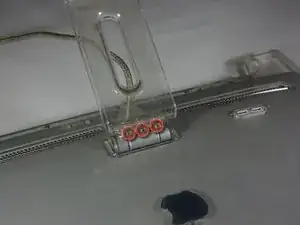

    • Using the PH 2 screwdriver, unscrew the three feet screws (9.52 x 4.43 mm).

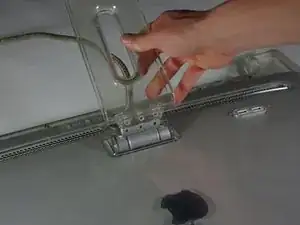

    • Remove the back foot from the hinge mount by gently pulling it upwards.

  2. hQ6gHdhLxdB6Qcsc
    hQ6gHdhLxdB6Qcsc
    DjKvrkSu1Tebd3b5
    ITKDcxvOYfiWPUdQ

    • Remove the back plate screws (5.25 x 4.43 mm) using the PH 2 screw driver.

    • Lift the back plate off of the display.

    • Completely remove the back plate and set it aside.

  3. TEoQo2qCsfkGigBa
    TEoQo2qCsfkGigBa
    bbwBP6vLuqQKN6kl

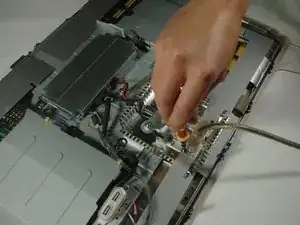

    • Remove the Apple Display Connector plate screws (9.52 x 3.43 mm) with the PH 2 screwdriver.

    • Once the two screws have been removed, move the cord out of the way.

  4. PCMI4fUE1oXYfZeo
    PCMI4fUE1oXYfZeo
    gD4KD6AEUtwKTAyR
    e3jvPWdXSPYQGZsq

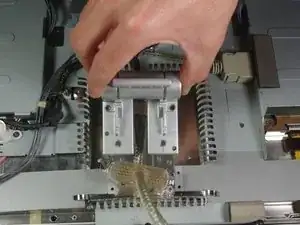

    • Remove the hinge plate screws (5.52 x 3.43 mm) with the PH 2 screw driver.

    • Then lift out the hinge mount.

Conclusione

To reassemble your device, follow these instructions in reverse order.
