Removing the Nokia 6230b Front Cover

Difficoltà

Easy

Passi

6

Tempo Necessario

1 - 2 minuti

Introduzione

This repair is very straightforward and requires no tools to perform.

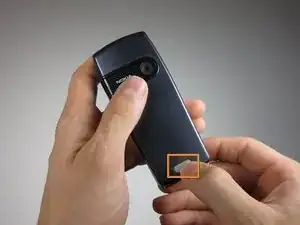

  1. KvCstoc5PSY4KYDW

    • Press down the button on the back panel.

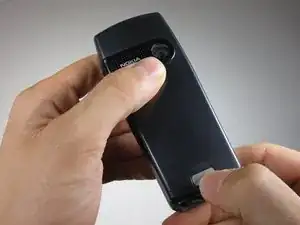

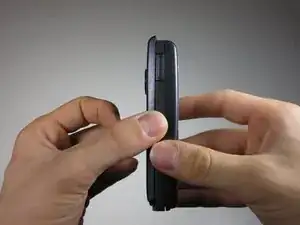

  2. SuOKhNVMjwj4tnqU
    SuOKhNVMjwj4tnqU
    QQ2eEaZCyZVZSt65

    • Push the back cover upwards.

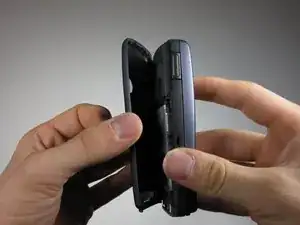

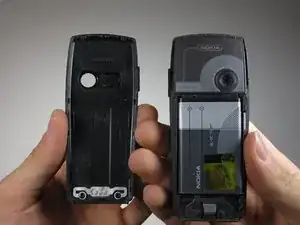

  3. HRhBKrOPIv12FODk
    HRhBKrOPIv12FODk
    i1wTFKAEDYMoGGtQ

    • Remove the back cover from the phone.

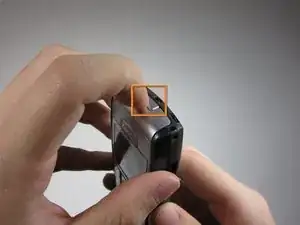

  4. hxSKqlqxLwfkufIv

    • Press the silver button on the top of the phone.

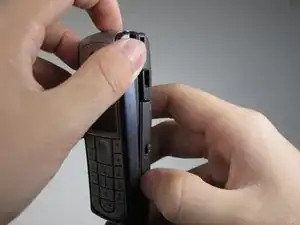

  5. T6LwrgFDTMQy1Hqf

    • Slide your thumbnail down the case seam to separate the rest of the case.

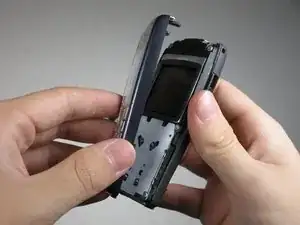

  6. AAZdv5ZZbDFjfLUm

    • Gently remove the case.

    • Careful! Do not bend the plastic tabs.

Conclusione

To reassemble your device, follow these instructions in reverse order.
