SSD M.2 Drive Replacement

Scritto Da: Gaëtan Suss
  • Commenti: 0
SSD M.2 Drive Replacement

Difficoltà

Easy

Passi

9

Tempo Necessario

10 - 15 minuti

Introduzione

Use this guide to remove/replace your SSD M.2 drive from your computer.

If you haven't bought a disk yet, and you don't know if you need a SATA or NVMe disk, note that NVMe disks are faster than the SATA ones, but are not supported by all motherboards and are usually more expensive.

  1. wASWl6XF6GTIcur1
    wASWl6XF6GTIcur1
    AwUiHZLHgetmKEfZ

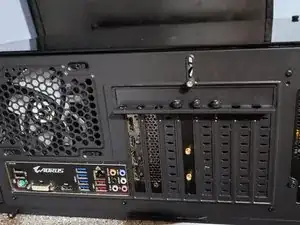

    • Turn off your computer if it is on.

    • Unplug all cables at the back and the front of your computer.

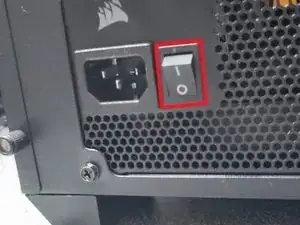

    • Make sure to turn off the power supply by putting the switch at the "O" position.

  2. kWMfAZJLSlnbRNrT
    kWMfAZJLSlnbRNrT
    6JJTVk1l1psPFGjB
    kQXQG2jJr2TDePwv

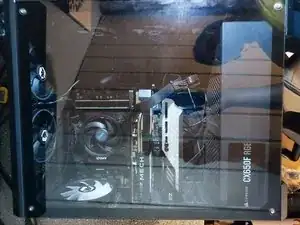

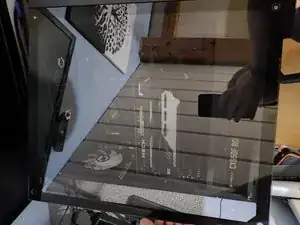

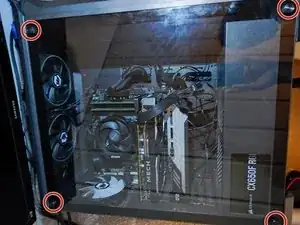

    • Remove the side panel to get inside of your computer.

    • In my case, with a DarkWitcher case from Empire Gaming, I need to unscrew 4 screws to lift and remove the side panel.

    • Locate the M.2 slot on your motherboard. If you don't see it, it may be hidden under the graphics card, you can check in the motherboard's manuel to find where it is.

  4. 1TAKF6BjI4IYDPnj
    1TAKF6BjI4IYDPnj
    gnAwAEQO6vMDRUHf
    Uas2PbQo2nJWdDDN

    • If the M.2 slot is accessible without getting the graphics card out, you can directly go to the step 6

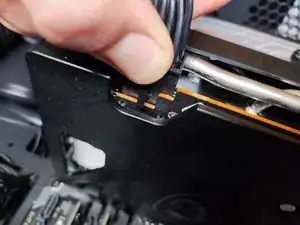

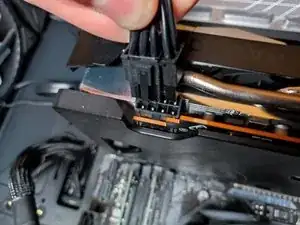

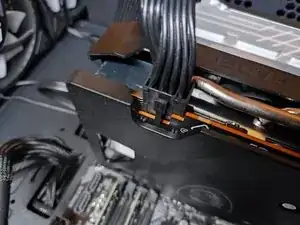

    • Unplug the power cable by pushing on the clip and pulling it.

  5. foB3MBCvVCsdQFil
    foB3MBCvVCsdQFil
    AheXXu1glVPMYCHR
    GxRG3OLXKVeh1IC5

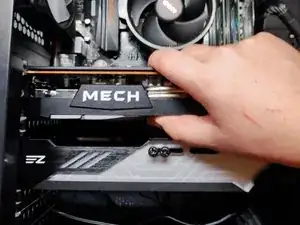

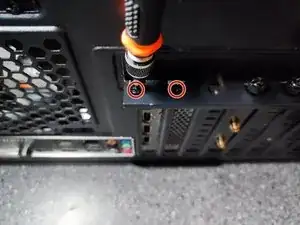

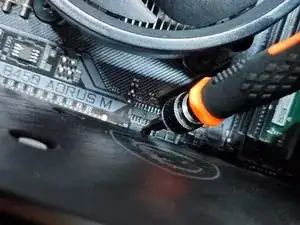

    • Remove the screws securing the graphics card in place.

    • Push on the clip at the right of the GPU slot.

    • Remove the GPU by lifting it carefully.

  6. L2ZY1FZvuMPFUMAU
    L2ZY1FZvuMPFUMAU
    Shc3gPBwqgCBvi1M
    glVxdxOb25BDB5Cb

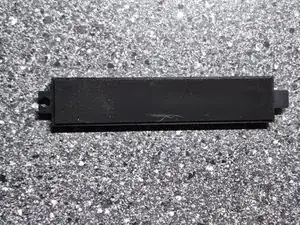

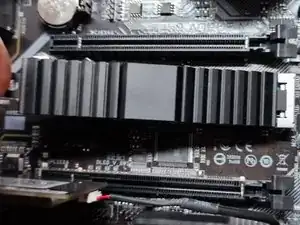

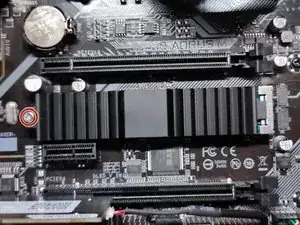

    • If your motherboard has no heat sink on you SSD, you can go the next step.

    • Remove the screw securing the heat sink in place.

    • Remove the heat sink by lifting it.

    • The thermal pad can stick to the drive, don't be afraid to take the heat sink off.

    • Make sure not to lay the heat sink on the side where the thermal pad is.

  7. ujhM6rRdYGGD3PFv
    ujhM6rRdYGGD3PFv
    A3JqZY5pMBVPyemA
    RSXEbMIIpJlJCOYj

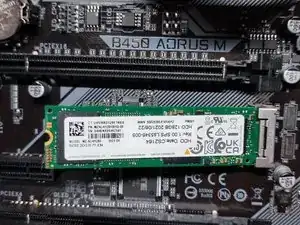

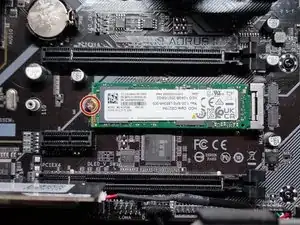

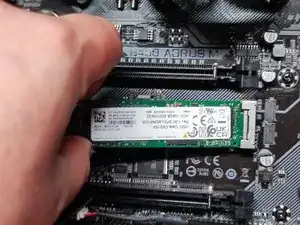

    • Remove the screw securing the disk in place.

    • Once the screw has been removed, the drive will lift itself.

    • Pull the drive to the left to take it out of the slot.

  8. iWZOSIOSxvJyNPWm
    iWZOSIOSxvJyNPWm
    rijGsILhRST1wfBJ

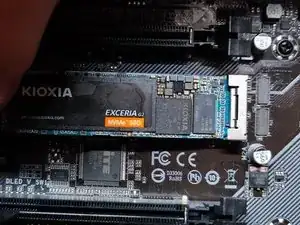

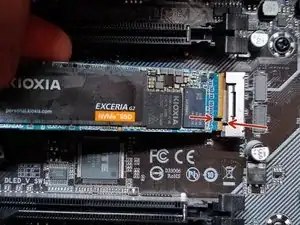

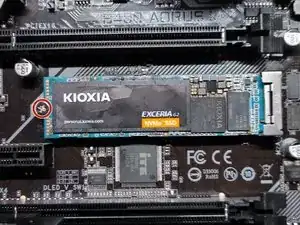

    • Align the notch on the slot with the notch on the drive.

    • Insert the new drive in the slot.

  9. fxmckhqy5h5PdxO6
    fxmckhqy5h5PdxO6
    IacYDNvm5rUVdOhf

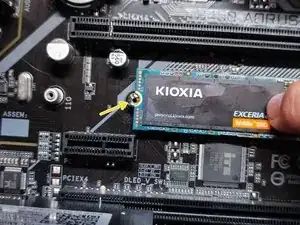

    • Press slightly on the drive and align it with the screw hole.

    • Screw the screw.

Conclusione

To reassemble you device, follow the instructions in reverse order beginning by the sixth step.
