Replacing the Freezer Bulb Cover and Light Bulb for an older Whirlpool Side By Side Refrigerator

Scritto Da: Bill Gilbert
  • Commenti: 0
Replacing the Freezer Bulb Cover and Light Bulb for an older Whirlpool Side By Side Refrigerator

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

Use this guide to replace the freezer bulb cover and light bulb for your older Whirlpool side‑by‑side refrigerator. Follow the steps carefully to ensure a successful replacement.

The light bulb cover protects the light bulb from inadvertent breakage.

  1. GAB31IUS1UwNdE6E

    • Before you begin your repair, perform the following:

    • Turn off your main water supply (if connected)

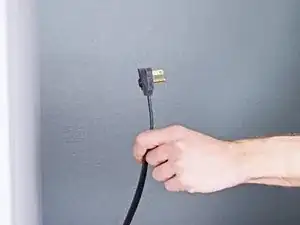

    • Unplug your device

  2. UkZBqjBQ1tvrfHyQ

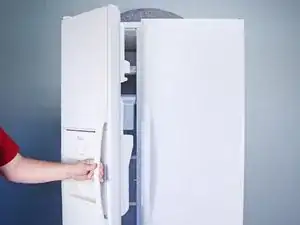

    • Pull the handle of the freezer door towards you to open it.

  3. P4UhiOSxGKWTJYjO

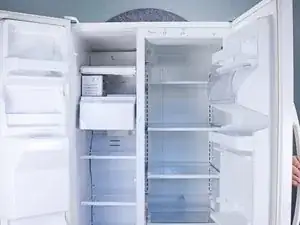

    • Pull the handle of the refrigerator door towards you to open it.

  4. CgYL3RiUahMZr2s3
    CgYL3RiUahMZr2s3
    gjZFkd2iObcxbWZN
    iYFfrdClJsyp2PQi

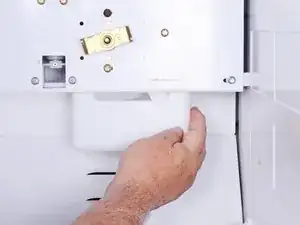

    • Press the right edge of the freezer bulb cover to release the retaining clip.

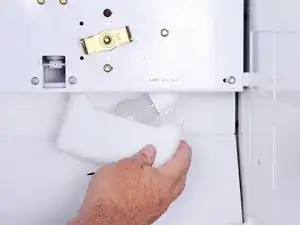

    • Carefully remove the freezer bulb cover from the refrigerator.

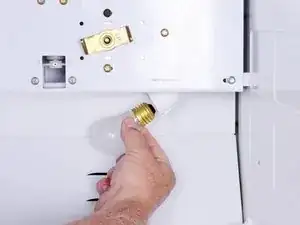

    • Remove the light bulb.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Repair didn’t go as planned? Ask our Answers community for help.

Take your e-waste to an R2 or e-Stewards certified recycler.
