Riparazione PlayStation 4 che si accende e poi rispegne

Scritto Da: TronicsFix
  • Commenti: 73
Riparazione PlayStation 4 che si accende e poi rispegne

Difficoltà

Facile

Passi

10

Tempo Necessario

10 minuti

Introduzione

Questa guida è piuttosto semplice e la maggior parte delle persone dovrebbe riuscire a completarla senza problemi.

*Stai usando questa guida a tuo rischio e pericolo. TronicsFix (e il traduttore della guida) non si assume nessuna responsabilità e non risponderà di qualsiasi danno che può verificarsi seguendo questa guida.

  1. oh2UDNSyIKmeblCI

    • Stacca tutti i cavi della PS4.

    • Rimuovi la copertura dell'hard drive.

    What size are the washers?

    Dave Hartles -

  2. XmL3lUMjtDZt44yc
    XmL3lUMjtDZt44yc
    VMUOT1x6DcHFIFxq

    • Rimuovi due viti di sicurezza Torx T8 security dalla copertura superiore.

    • Rimuovi lo sticker della garanzia (se c'è ancora) e rimuovi la vite nera della copertura superiore utilizzando il cacciavite Torx T8 security.

    De preferencia usar una llave Torx T9 en lugar de una Torx T8 para evitar barrer el tornillo de seguridad queda un poco más firme y no queda juego entre la llave y el tornillo

    CHINO DFS -

  3. AK2GwaGiIDZwbJ4g
    AK2GwaGiIDZwbJ4g
    kPUTMTCcHGpf1Vnm
    LPfcUuIhHtoVAQaS

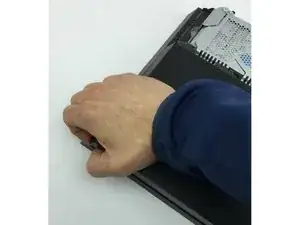

    • Solleva la parte frontale della copertura superiore prima dalla parte di destra, poi dalla parte di sinistra.

    • Stacca il coperchio e mettilo da parte.

  4. VvVkA3f1aMQYPYUV
    VvVkA3f1aMQYPYUV
    GdXHJXXiRORyORHC
    ZbBOn1NHPjcMGHgR

    • Con un cacciavite a croce, rimuovi le due viti sulla piastra di APU/dissipatore.

    I need a replacement for these clamp screws. What type of screws are these please?

    Djminipop -

    What size are the clamp screws

    Sky Lew -

    What kind of nylon washers do I need for this fix? Are there different sizes?

    Beast Man -

    This will not work on older systems it doesn’t even look the same

    Alexander Jesse Bachelier -

  5. sUV5DfAYHJkpuOon
    sUV5DfAYHJkpuOon
    uSgZlc65DJio5VtI
    xZGhYZBoi4g3bfQF

    • Inizia aggiungendo due rondelle sotto ognuna delle due viti.

    • Rimonta la piastra e serra le viti.

    What size washers

    andre daniels -

    I think any size will work as long as tou can screw the plate back down, and they don't extend past the cover for your PS4

    Blake Hannan -

    what size did you use

    Recruit_Jesus _1 -

    What if you are missing the APU/Heat Sink Clamp

    Caleb Gaylor -

    What are washers

    Andy Pacheco -

    Washers are flat round pieces of metal with a hole in the middle. You can see two of them in the first photo.

    Sunny Ripert -

  6. YUSErVTW5UmABhQS
    YUSErVTW5UmABhQS
    bKWf6gVBbMBEUFd2
    CWrJYQquGWrDQ5ck

    • Ricollega la PS4 all'alimentazione.

    • Tocca la parte in rame della PS4 per accenderla.

    • Se la PS4 si accende e rimane accesa puoi considerla riparata. Altrimenti segui il passo successivo.

  7. FCJxcpjNOVNwNZli
    FCJxcpjNOVNwNZli
    k4DkEORaUoky3aUO

    • Se la PS4 continua a non funzionare dopo aver aggiunto due rondelle, rimuovi la piastra del dissipatore e aggiungi una terza rondella sotto ognuna delle due viti che la bloccano.

    Bonjour des rondelles en plastique ?

    RiKO56 BzH -

  8. huuUhvILKwsMHZWL
    huuUhvILKwsMHZWL
    m3q1RaPIPBGhYZom

    • Dopo aver aggiunto la terza rondella e aver serrato le viti, tocca la parte in rame della scheda madre.

    • Se la PS4 non fa rumore e nessuna luce si accende, le viti sono troppo strette... prova ad allentarle un poco (circa 1/8 di giro) a riprova ad accendere la console. Ripeti l'operazione finché non si accende.

    • Se la console continua ad accendersi e spegnersi dopo i passi descritti, questa procedura non funzionerà per la tua PS4.

    I am wondering the significance of this fix. I have watched multiple videos ( at least 20) read guides , etc. nobody explains why this works. Does it have something to do with electricity conducting through this bracket? Sorry I am not much of an electronics guy I just love to learn why things won't work. And am also trying to repair my PS4 as well. This method works sometimes but then sometimes my PS4 fails .

    Blake Hannan -

    If you are resorting to this fix, the heart of your PS4 is likely irreversibly damaged. By adding the washers you are making the clamp apply more pressure on the APU (main GPU/processor). There is likely a cracked solder connection and this helps to make the joint. This is not a permanent fix. If it brings more life to your system and let's you keep gaming, then it's definitely worth a try.

    Patryk Walters -

  9. YunSJmurQCOvL3er

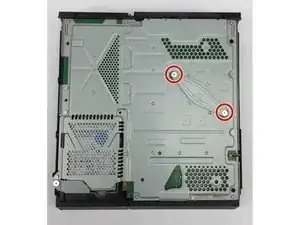

    • Se la tua tua PS4 non si accende (o si accende e rispegne di nuovo), prova a rimuovere nuovamente la copertura superiore e serrare le viti sulla piastra. Se sono troppo strette la PS4 non funzionerà. Prova ad allentarle finchè la PS4 non si accende. Fai attenzione se hai la console attaccata alla corrente. Puoi farlo ma non è raccomandato.

    Sur ma ps4 2eme génération je n'ai pas les 2 vis la comment je peut faire ducoup

    Only- nicolas -

    PS4 still doesn’t turn on when you push the button it keeps just beeping

    Pete kitsos 16 -

    • Se la copertura della tua PS4 è totalmente rimossa, e la console sta funzionando correttamente, assicurati di rimontare la cover stessa: è progettata per il ricircolo d'aria e serve a mantenere il sistema freddo. La sua mancanza può portare la console a surriscaldarsi e spegnersi.

    Nice post. I learn something totally new and challenging on websites [|]best dns servers for gaming I stumbleupon every day. It's always useful to read through articles from other authors and practice something from other sites.

    Swami Ayyappa -

    Mi PS4 enciende pero no proyecta nada en el televisor no escucho ruido ni del abanico como si estuviera apagado. No hay problema de luz azul porque se mantiene blanca , verifique el cable HDMI y esta correcto, en el televisor marca que no hay señal del PS4. Que puede estar pasando?

    Luis Wever -

    Tengo mi PS4 enciende, no tiene problema de luz azul, pero no proyecta nada al televisor, el televisor marca sin señal no se escucha ningún ruido ni del abanico del PS4. Que puede estar pasando hace unos días estaba funcionando perfectamente. Verifique el cable HDMI y esta bien.

    Luis Wever -

    I performed this repair today and my PS4 is working perfectly! If you have a machine that is not working properly, give this a shot. This cost me less than $10 including buying the Torx T8 tool.

    Jason Harrell -

    A ver si alguno me puede ayudar.Prendo la play,pongo forntnite,aparece el cartel de sobrecalentamiento y se apaga.Aclaracion..se apaga estando tibia.Le cambie la pasta y hace lo mismo.Que puede estar pasando?.Pongo YouTube o incluso Minecraft que tiene baja resolución de vídeo y no se apaga.Pongo forntnite con 720p y se apaga..heeeeeeelp

    leonardo grattarola -

    I'm having a similar issue. When I turn on my ps4, the blue light will appear, beep, then shutdown. In that order within a second, and won't do it again unless It is unplugged and repluged. I am assuming the power supply went out. Would this work? Or is my power supply theory correct?

    Rodrick Wilkerson -

    Hi, i am facing the exact same issue. Did you manage to find any solution to this issue. Would be really glad for any feedback

    Bikash -

Conclusione

Per riassemblare il tuo dispositivo, segui le istruzioni in ordine inverso.
