Riparazione danno da liquidi iPhone

Scritto Da: pollytintop
  • Commenti: 65
Riparazione danno da liquidi iPhone

Difficoltà

Difficile

Passi

12

Tempo Necessario

1 - 2 ore

Introduzione

Fai riferimento alle guide di riparazione per iPhone per istruzioni sullo smontaggio del tuo dispositivo. Potresti aver bisogno di una spazzola morbida, dell'alcool isopropilico e un contenitore grande abbastanza per immergere la scheda madre nell'alcool. I passaggi per la pulizia possono richiedere di essere ripetuti più volte peer ottenere un buon risultato. Questi consigli di pulizia potrebbero non far tornare a funzionare il tuo telefono, ma una volta pulito il liquido e la corrosione, puoi capiree se qualche componente va sostituita.

Per maggiori informazioni, leggi la guida per la riparazione dei danni da liquido per iPhone.

  1. MjAWVcjjEXgaRoSU
    MjAWVcjjEXgaRoSU
    mQHKdnOAwilRmMgk
    jsYuTj45U2Sus1GY

    • Vedi se è presente del liquido o dei residui tra il touch screen e lo schermo LCD. Questo telefono mostra dell'acqua nella zona interessata, e probabilmente c'è ancora più liquido all'interno.

    • In questo caso, non ci sono dei segni evidenti di danni o corrosione nel connettore di carica.

    • Non ci sono dei segni evidenti di danni o corrosione nella presa jack.

  2. eE1MUQsO16RRkN4G

    • Dei danni da liquido nel telefono possono complicare lo smontaggio. Stai attento ai cavi e connettori che potrebbero essere incollati ad altre componenti per via del liquido.

    • Sollevando il pannello anteriore di questo telefono, il cavo a nastro del connettore di carica era incollato al telaio intermedio.

    What if the android phone is inbuilt??

    Fatimah Lawal -

  3. sYEwEllkxHarue1E
    sYEwEllkxHarue1E
    iYId2fIuMEvnGq3q
    WwIxVuon4Vqif5HL

    • L'indicatore dei danni da liquido è rosa, indicando che del liquido è entrato nel telefono.

    • Dei residui e della corrosione è chiaramente visibile sui connettori per lo schermo LCD, il digitizer e il sensore di prossimità, oltre agli alloggi per la fotocamera e la scheda SIM.

  4. QbLgJ6qSiQdrvOSe
    QbLgJ6qSiQdrvOSe
    T4oxNS5LMeKTNEaU

    • Anche l'indicatore dei danni da liquido del connettore di carica è rosa, indicando che il liquido è arrivato anche da questa parte del telefono.

    • La parte superiore di questo connettore sembra abbastanza pulito, con solo dei residui verdi di corrosione vicino al connettore 4.

  5. 1djlvFeT1b2WROfA
    1djlvFeT1b2WROfA
    JCLPNDPPFPYCLbfB
    UB2XVmRGM6OjetDx

    • Il retro del gruppo dello schermo mostra ancora più corrosione verde e residui vicino ai connettori dello schermo LCD e del digitizer.

    • Rimuovendo lo schermo LCD e la copertura posteriore del gruppo della capsula auricolare e del sensore di prossimità, rivela dei danni da liquido vicino alla capsula.

    • Il sensore di prossimità è solo leggermente danneggiato.

  6. baeYtkfRDHA2Qvqt

    • Un controllo più da vicino del sensore di prossimità/capsula auricolare mostra dell'ulteriore danno da corrosione.

  7. wUpOvItDAZpRDrLr

    • Dopo aver rimosso la scheda madre si vede dell'altro danno da liquido.

    • Il motore della vibrazione è leggermente arrugginito.

    • I contatti della batteria sono corrosi.

  8. f1ypUPbpxMtYJlIP

    • Il connettore 5 della presa jack, il motore della vibrazione e i tasti del volume mostrano una leggera corrosione.

  9. gthLRfAVRvaqYPgv
    gthLRfAVRvaqYPgv
    4YJYWO5RXOHA4K5i

    • Il retro della scheda madre mostra dei segni di corrosione sui contatti della batteria.

    I cleaned these Battery contacts, and then one of the contacts lost its GOLD color, and got some black signs :/

    Is this ok?

    Please see the pic:

    http://img42.imageshack.us/img42/5630/im...

    Shai -

    it should be ok.

    pollytintop -

    Hi I got my iPhone 6 water damage it didn't turn on only vibrated when plugged in and a few months later I tried it again now it turns on but when it goes to rest mode it won't turn back on any idea what it would make it do that ?plz help phone was only a few weeks old

    Jesus -

  10. 1ELRjo4fZZMQWtwg
    1ELRjo4fZZMQWtwg
    bc3ryPBKKifkTVPO

    • A seconda dell'entità del danno da liquido, rimuovere questa schermatura può non essere necessario, e rimuovendola rischi di danneggiare le piccole componenti saldate sulla scheda stessa. Se decidi di rimuovere la schermatura, procedi attentamente e usa uno strumento in plastica come uno spudger o uno strumento di apertura in plastica per fare leva.

    • Cerca le alette sulla schermatura che fanno presa su quelle attaccate alla scheda madre.

    • Usando il tuo strumento in plastica, prendi un lato di un'aletta vicino ad un angolo della schermatura, quindi fai leva per separarlo dalla scheda madre.

    • Prestando attenzione a tutte le piccole componenti saldate sulla scheda, fai leva tutto attorno i bordi della schermatura fino a separarla.

  11. TYTijXyLXn3JvliU
    TYTijXyLXn3JvliU
    aIJkpOsUH4CdkjeP

    • Immergi la scheda madre nell'alcool isopropilico e lasciala abbastanza per ammorbidire i residui induriti e per rimuovere l'acqua o il liquido rimasto. Usa una spazzola morbida per rimuovere la corrosione e i residui visibili.

    • Residui della scheda madre rimasti nell'alcool.

    • Pulisci tutte le estremità dei cavi a nastro, i contatti della batteria, i connettori, i chip e i fusibili sulla scheda madre con una spazzola morbida.

    • Ripeti la pulizia se necessario, o se delle tracce di residui sono ancora visibili.

    • Lascia asciugare del tutto la scheda madre o le altre componenti prima di rimontare il tutto.

    Hey, thank you so much for this great instruction!! :)

    The only thing I can't see here, is if you used 70% or 99% Isopropyl-Alcohol. The only bottle I could find has 70%. Is this enough? Or has it to be 99%?

    Thank you!

    Clara Meinzer -

    The purer, the better. Don't forget to ventilate the room !

    Didier Daniel -

    Do i need to use any other material to clean after take it from isopropyl alcohol?

    Chong Khey Shiun -

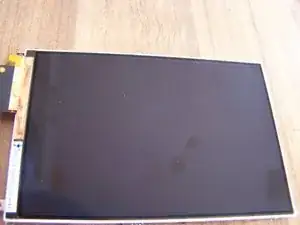

  12. SkO6LY5awojVfOpW

    • Pulisci lo schermo LCD con un panno impregnato di alcool isopropilico. Non consigliamo di immergerlo come la scheda madre, in quanto potrebbero restare delle macchie sullo schermo.

    • Questo è lo schermo dopo la pulizia: le macchie d'acqua non sono più visibili.

    Hi,

    you didn't show what and how to clecn the LCD.. Just put it inside the isopropyl alcohol container that we had used for the Motherboard?

    Shai -

    "wipe" means with a cloth moistened in alcohol.

    pollytintop -

Conclusione

Per rimontare il tuo dispositivo, fai riferimento alle guide di riparazione specifiche per il tuo iPhone.

Dopo aver ripetuto la pulizia, su questo cellulare d'esempio è stato necessario sostituire i connettore 1, 2 e 3 sulla scheda madre, un nuovo LCD e un nuovo digitizer. La corrosione alle estremità dei cavi e sui connettori non poteva essere rimossa adeguatamente. Tutto il resto funzionava correttamente e questo iPhone è ora di nuovo funzionante. Buona fortuna. Si spera che questa guida dimostri che i danni da liquidi nel tuo iPhone non sono sempre ovvi o visibili e che alcuni telefoni possono beneficiare da uno smontaggio e dalla pulizia.
