Introduzione
This guide will instruct the user on replacing the trigger of the Ryobi P277. This guide does require soldering and removing electrical components.
Strumenti
-
-
Lay the device on its side.
-
Remove eight 5 mm screws using a TR10 Torx screwdriver.
-

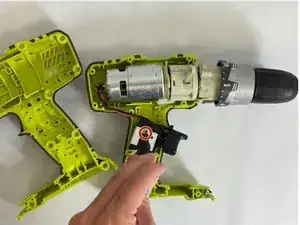

Separate the two halves by pulling up on the top half.
-
-
-
Locate the red and black wires connecting the trigger to the motor.
-
Use a soldering iron to separate these wires from the trigger.
-
Conclusione
To reassemble your device, follow these instructions in reverse order. You must use solder to reattach the wires in their correct positions.
