Samsung Alias 2 Logic Board Replacement

Scritto Da: Chris
  • Commenti: 0
Samsung Alias 2 Logic Board Replacement

Difficoltà

Moderate

Passi

10

Tempo Necessario

15 minuti

Introduzione

This guide tells you how to remove a faulty logic board and install a new one.

  1. 5wHZpTCNwjrE6m5L

    • Push down on the back cover of the phone, then remove the back cover.

  2. mdXxO6XDxlguhcHl

    • Remove the battery.

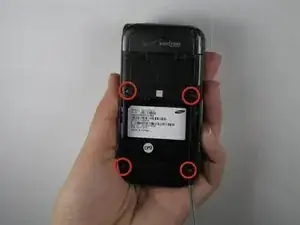

  3. dgtaHDH6E4nwsles

    • Remove the (4) 4.2 mm screws from the four corners of the battery slot.

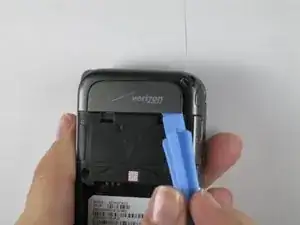

  4. 5ujhKDEhQ3NuBase

    • Use plastic opening tools to peel off plastic Verizon logo tab from the top of the back outside.

    • Note: The tab is stuck on there with glue, this is alright, just peel it off.

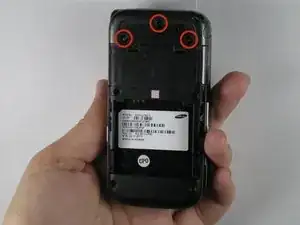

  5. yfcqRkNc3srbEIBN

    • Remove the (3) newly uncovered 4.3 mm screws.

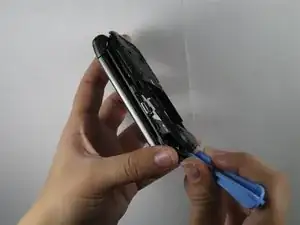

  6. pfRNUqTOXpRdb6Zp

    • Remove the back outside casing using the plastic opening tool.

    • Warning: Do Not lose the buttons on the side of the phone, as they will come off of the phone when you remove the back outside casing.

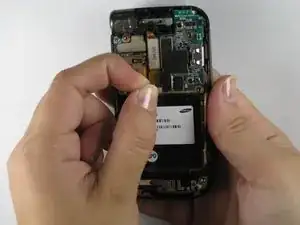

  7. PX1ygpLWVUUZToDd

    • Pull up on the yellow tab.

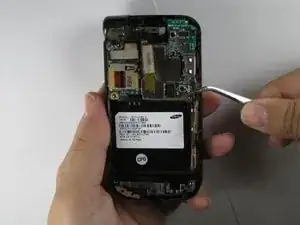

  8. CG5JG5vReUdyiWME

    • Disconnect connecting cord using tweezers.

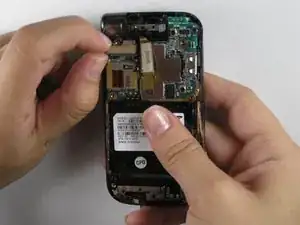

  9. ChD2motjZEHwFvgG

    • Disconnect rectangular ribbon.

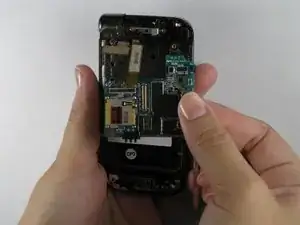

  10. qZiURWvfM2rRMwZl

    • Remove logic board.

Conclusione

To reassemble your device, follow these instructions in reverse order.
