Samsung Chromebook 2 Trackpad Replacement

Scritto Da: Sebastian Baba
  • Commenti: 2
Samsung Chromebook 2 Trackpad Replacement

Difficoltà

Moderate

Passi

11

Tempo Necessario

10 - 15 minuti

Introduzione

You may need to perform this replacement if you are experiencing an unresponsive trackpad on your Chromebook . Ensure your device is powered off before beginning this replacement.

  1. AMwGJuDSJYR1ERBD

    • Make sure your Chromebook is turned off before you begin.

    • Set the labtop face down on a flat surface.

  2. CtKArBwuKaMudEmb
    CtKArBwuKaMudEmb
    QmFRYmW4oLyIo5qY
    1BjflJm5WrkuShAK

    • Remove the nine 5 mm screws on the bottom cover using a Phillips #0 screwdriver.

  3. OMAdWBvGo1qu3Wua
    OMAdWBvGo1qu3Wua
    Q3mSZHLhO1QaOpT4

    • Loosen the back cover panel with a plastic opening tool, and work it all the way around the computer.

  4. aAEARWARlIEUctsD
    aAEARWARlIEUctsD
    MWxYRUIg5BGr6OLp

    • Once the cover is loose, remove the back cover panel using your hands.

  5. lg5ZlvCTUHOOnA5O
    lg5ZlvCTUHOOnA5O
    TIXKejjiCOuIGCHj

    • Unscrew the four 4 mm screws holding the battery in place with a Phillips #0 screwdriver.

  6. RbxUDlSjeOfM3B5A
    RbxUDlSjeOfM3B5A
    byDN21e4Wm6cGdlU
    ISgY11yn5xvuNdKo

    • Disconnect the wire that connects the battery to the motherboard by pulling upward.

  7. BdLorsq1dLubPQcT
    BdLorsq1dLubPQcT
    Jxy2un2qG5rv2BP6
    BMlvTgLhRGDBNJ5C

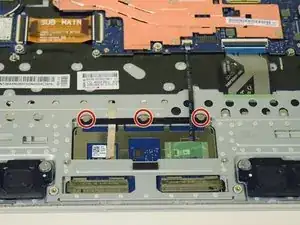

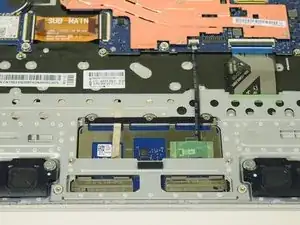

    • Using the Phillips #00 screwdriver, remove the three 2 mm screws keeping the trackpad in place.

  8. EI1F63kR6XwxOmuo
    EI1F63kR6XwxOmuo
    owISRx1yUD5CAOZE
    VnBAQxPIJ3NlBwyv

    • Remove the connector between the trackpad and the motherboard by pulling upwards on it at the port.

  9. KoJZfOVHBDuhKI5I
    KoJZfOVHBDuhKI5I
    HHGPgVDAFrBIUbU3

    • Peel back the adhesive strip holding the trackpad in place with the heavy-duty spudger.

  10. JIOOBV2W21BGL2oS
    JIOOBV2W21BGL2oS
    tpfvV6Fr3tKHeVjh

    • Use a plastic opening tool to disconnect the metal trackpad support brackets.

    • Don't be afraid to use a moderate amount of force when prying the support brackets loose.

  11. LUJRwRY5ZXul2PaE
    LUJRwRY5ZXul2PaE
    XKbf3xlIffKJNPHC
    WHZanXpyCAKjxMps

    • With the laptop slightly open, push the trackpad upwards at the rear, and pull it out from the bottom.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Sebastian Baba

Membro da: 28/01/16

417 Reputazione

2 commenti

Olá, gostei do site , pois apresenta um conteúdo bem rico em conhecimento gostaria de uma assistência sempre uso os métodos de reparo do site sempre da certo , porém não visualizei os manuais de reparo toubleshoting , ficaria muito agradecido caso vocês envie esses arquivos pra mim aprofundar meus conhecimentos da área de eletrônica .

atenciosamente.

jordson Martins Dantas -

Reassembly Note: It should be noted that the trackpad will not "click" if the 2mm screws in STEP 7 are tight. Screw down until just snug then back off slightly. The bracket will then function correctly to return the trackpad to the up position after each click depress.
