Samsung Chromebook 2 XE503c12 Motherboard Replacement

Flip device over so that the underside is facing up.

Remove nine, 7mm PH#0 screws from the bottom.

Using the plastic opening tool, pry open the bottom of the Chromebook case, working all around the computer.

Lift the panel out of the way to reveal the battery.

Remove four, 5mm Phillips #0 screws connecting the battery to the laptop

Lift the battery, and pull it up and towards you, away from the connector.

Using a plastic opening tool, pry the connector up from the contact.

Remove the battery from the device.

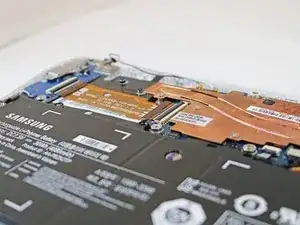

Locate the motherboard at top right of chromebook.

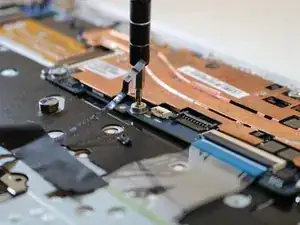

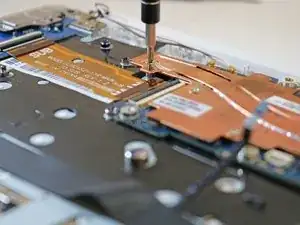

Remove four 9mm Phillips #0 screws and two 7mm Phillips #0 screws.

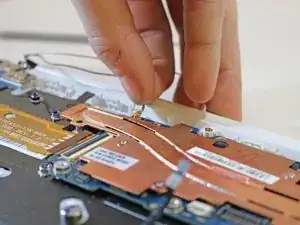

Remove auxiliary wires for microphone and webcam.

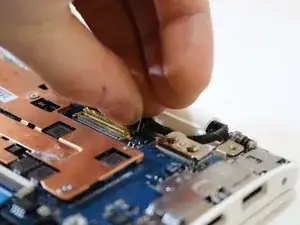

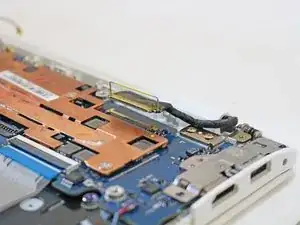

Lift hinge on connector up and pull the connector away from the device.

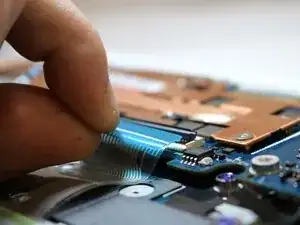

Remove the connector for the motherboard and sub-board.

Remove the connector for motherboard and chromebook.

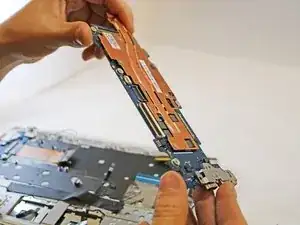

Remove the motherboard from the device.
