Samsung Chromebook 2 XE503c12 Screen Replacement

Scritto Da: Jordan W Jones

Commenti: 0

Samsung Chromebook 2 XE503c12 Screen Replacement

Difficoltà

Moderate

Passi

Tempo Necessario

20 - 25 minuti

Introduzione

Issues with a broken or cracked screen can be resolved by following this guide. The only tools required will be a plastic prying device, and a standard Phillips #0 Screwdriver

Strumenti

Passo 1

Flip device over so that the underside is facing up.
Remove nine, 7mm PH#0 screws from the bottom.

Passo 2

Using the plastic opening tool, pry open the bottom of the Chromebook case, working all around the computer.
Lift the panel out of the way to reveal the battery.

Passo 3

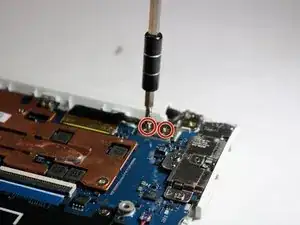

Remove four, 5mm Phillips #0 screws connecting the battery to the laptop

Passo 4

Lift the battery, and pull it up and towards you, away from the connector.
Be sure to lift gently to avoid damage to connector

Passo 5

Using a plastic opening tool, pry the connector up from the contact.
Remove the battery from the device.

Passo 6

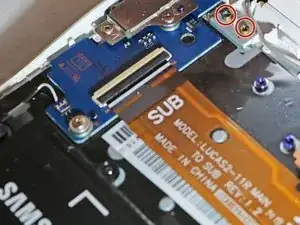

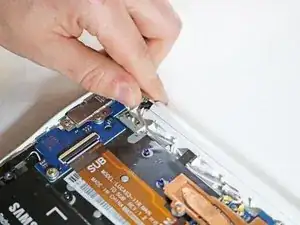

Remove the four 5mm Phillips #0 screws on the hinges.

Passo 7

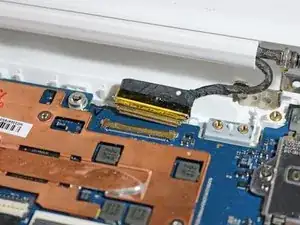

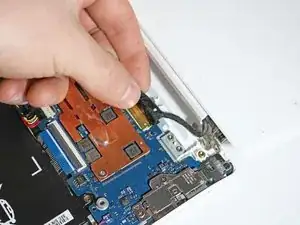

Unplug two auxiliary wires leading to the top lid.

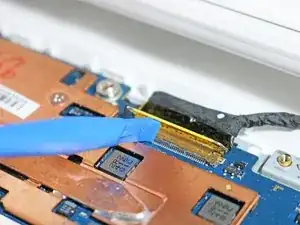

Using the plastic prying tool, lift the hinge on the connector up and pull the connector away.

Passo 8

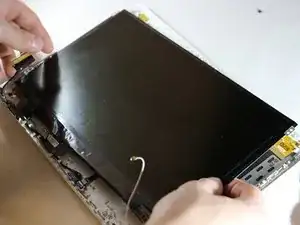

Lift the hinges up and separate the top lid from the bottom casing.

Passo 9

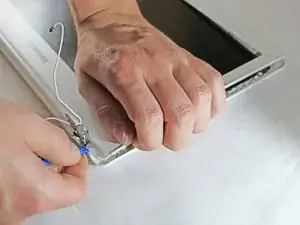

Using the plastic prying tool, carefully pry the casing apart from the screen.
When prying case apart, there is a risk of screen and parts of the casing shattering and cutting you.
