Samsung Epic 4G Power Button Replacement

Scritto Da: Andrew Cunningham
  • Commenti: 0
Samsung Epic 4G Power Button Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 - 20 minuti

Introduzione

This guide details how to install a new power button into your Samsung Epic 4G. Directions are provided for both disassembly and reassembly.

  1. 3KUStSvMCMQbVigA

    • Slide your fingernail along the edge of the device and pull at the plastic backing.

    • While pulling the plastic backing apart from the device, you will hear a snap sound which signals that the backing has detached.

  2. Kh1Oa1Me3jvLOlFj

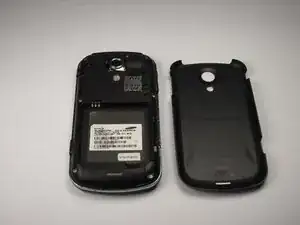

    • Pull at the plastic backing gently to remove it after hearing the snap sound.

  3. ROteOEH6ivNWfKWA

    • Remove the battery from the device by pulling the battery edge upwards.

  4. vVUdO1ToiZkqZueB

    • Locate the memory card on the upper right-hand corner of the device.

    • Remove the memory card from the device by gently sliding it out of its holder with your fingers.

  5. vRsvWGOuWXNJdh1D
    vRsvWGOuWXNJdh1D
    5gMsLJWDMy1wFldG

    • Remove the seven screws from the back of the phone using the Phillips #000 screwdriver.

    • Separate the backing from the silver trim around the phone by using a nylon spudger to pry between the two components.

    • While separating the two components, most of the buttons (including the power button) will fall out.

  6. iIBiN1DK1ZtYuaku
    iIBiN1DK1ZtYuaku
    vfJpocRZYjRkUiYk

    • Remove the power button using tweezers if it did not fall out in the previous step.

    • At this point, you can replace the power button with a new one from a manufacturer.

Conclusione

To reassemble your device, follow these instructions in reverse order.
