Samsung Galaxy Camera Screen Replacement

Scritto Da: Richard Hicks
  • Commenti: 3
Samsung Galaxy Camera Screen Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

5 - 7 minuti

Introduzione

  1. gBtaDMAdKNfNprUe

    • Begin removing the 3/16" screws for the device.

  2. NScoBeEQyMvEislq

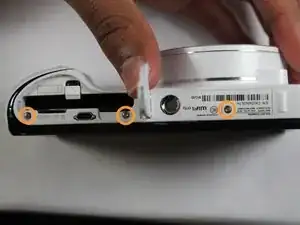

    • Turn the device and remove the additional 3/16" screws.

  3. ctibQVQkAnj4rrSt

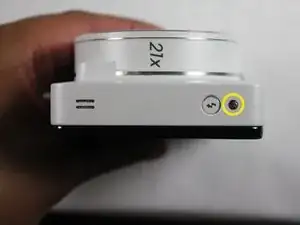

    • Turn the device and remove the additional 3/16" screw.

  4. 4qyDnYFPWejTZ5fq
    4qyDnYFPWejTZ5fq
    wMZGWqDEfWYD2lDH
    XYa6GEc6HUmHmjXp

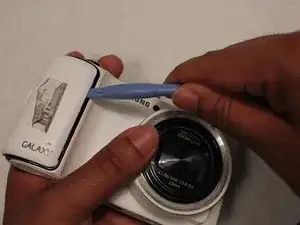

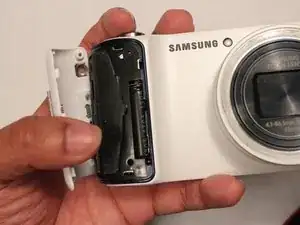

    • Take the white cover plate off.

  5. rF4RpdBUKWSjTMhR

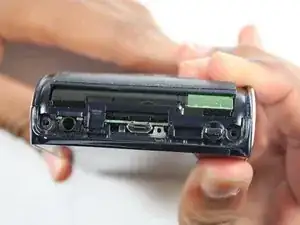

    • Using the plastic opening tools, pry open the camera from the bottom.

    • This may require a moderate use of force because of the sealing glue.

  6. aTxTT3Oh6uBGBDIt

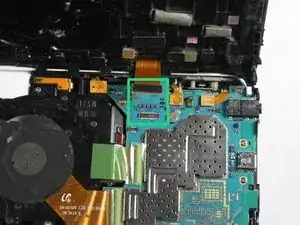

    • Gently pull the connector away from the motherboard.

    Help! I can't get this connector back in place! How did you do it?

    Thanks!

    rotraut geringer -

    Got it finally - and it's working again, I can't believe it! Thank you so much for the instructions!!!!

    rotraut geringer -

Conclusione

To reassemble your device, follow these instructions in reverse order.
