Samsung Galaxy Core Prime Home Button Replacement

Scritto Da: Kate Vogel
  • Commenti: 0
Samsung Galaxy Core Prime Home Button Replacement

Difficoltà

Difficult

Passi

14

Tempo Necessario

15 minuti

Introduzione

A common problem you may have with the Samsung Galaxy Core Prime is a sticky or broken home button. Rather than go somewhere to fix it you can use this guide to help you remove or readjust the button. You will need tweezers, a heat gun or hair dryer, a Phillips #00 screwdriver, and an iFixit Opening Tool.

  1. SSZxcQtQi1QNnqWL

    • Turn the smartphone off by using the power button on the right-hand side.

  2. E3ACInHixkThOHCG

    • Turn the smartphone over so that the rear camera is face up.

  3. cXfVCc6bGRD3MQhH

    • Use your fingernail or a flat tool to lift the back cover.

  4. GyjtbBVJvHpb4ZfN
    GyjtbBVJvHpb4ZfN
    UUcdMPApTC5Wp4aV

    • Locate the battery near the bottom of the phone. The battery is square, flat, and is labeled 'SAMSUNG'.

  5. Eq2PXntItESGPBVN

    • Use your fingernail or a flat tool to lift the battery out.

  6. McBeo6WHuB6bMqPl

    • Use your thumb to remove the sim card.

  7. JPvGUPWC3fCeoymx
    JPvGUPWC3fCeoymx
    tLMeLSJg1Kwguljh

    • Use a Phillips #00 screwdriver to remove the eight 4 mm screws that secure the midframe.

  8. PgfljM1agV5FXovU

    • Heat the frame with a hair dryer or heat gun. Do this until the adhesive is loosened.

    • Take care when using these heating tools.

  9. E24bQL1bDQcARn6y

  10. ahMfdFhKUTnDhBFB
    ahMfdFhKUTnDhBFB
    GExCunEVjIVLbFbV

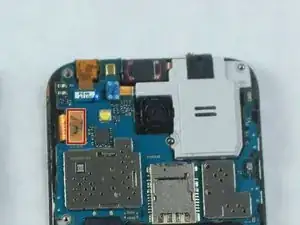

    • Disconnect the LCD screen/touch screen ribbon from the motherboard using tweezers.

  11. VVKm5Sjr2TCL2jIP

  12. ZB6KSLt2QInI2jOV

    • Heat the sides of the screen with a heat gun or hair dryer.

  13. UCsVgN1SGTEgLmQb

    • Use the iFixit Opening Tool to remove the plastic panel that separates the motherboard and the screen.

  14. 5jvdG5oIgdfTSSeF

    • Use tweezers to remove the home button.

Conclusione

To reassemble your device, follow these instructions in reverse order.
