Samsung Galaxy J1 / J100 Touch Screen & LCD Replacement

Scritto Da: ZFix
  • Commenti: 27
Samsung Galaxy J1 / J100 Touch Screen & LCD Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

20 minuti

Introduzione

How to disassemble and replace the Touch screen digitizer and the LCD display.

  1. mF4oRQjIqt5iUZep
    mF4oRQjIqt5iUZep
    axaREgKXKfNSfQxp
    SbYRbtIt1WJCKZS2

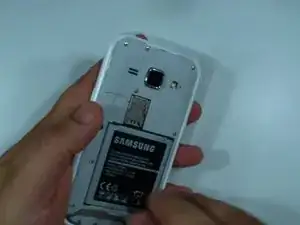

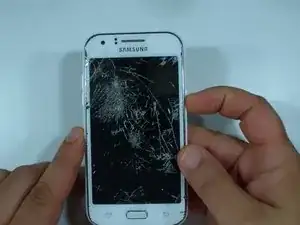

    • Here we have Samsung Galaxy J1 with broken glass and screen.

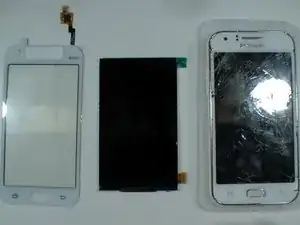

    • We will replace the touch screen and the LCD.

    • First remove the battery and any installed SIM and memory cards.

  2. NTnLDYFkPyDEDUKY
    NTnLDYFkPyDEDUKY
    UoIOUrtSZwrdGnN2
    FQceoaIUNYo1POQx

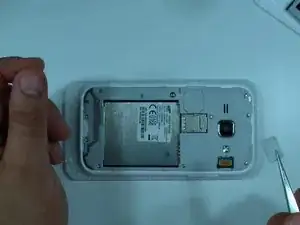

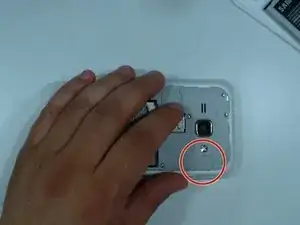

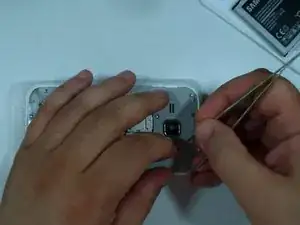

    • Under this plastic is the LCD flex cable connector.

    • Use a tool with a needlepoint and remove it.

    is it posible to change only display my touch is allright

    Sa Bin Sth -

  3. qV1kpu5fJvUWiX1G
    qV1kpu5fJvUWiX1G
    VvroAoPDSTvI4NTN
    3beIIB5Rbb2ZVuTV

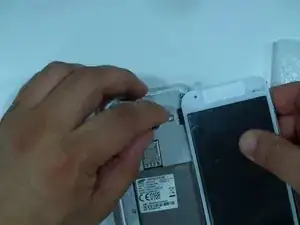

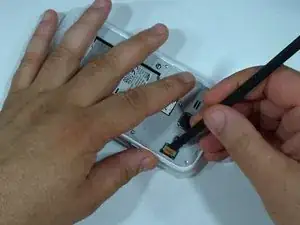

    • Disconnect the LCD flex cable.

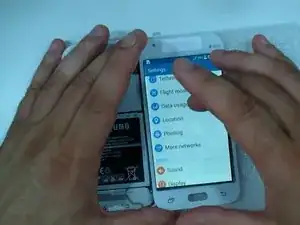

    • When I can, I always test new replacement part before I install it.

  4. 1ql2rUiXbqcoswnM
    1ql2rUiXbqcoswnM
    qOlw2JHWYkSOQcQk
    MfqTgCwCnfFmBkff

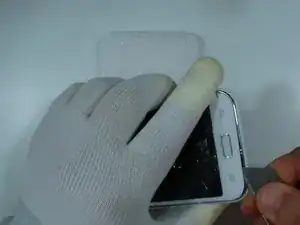

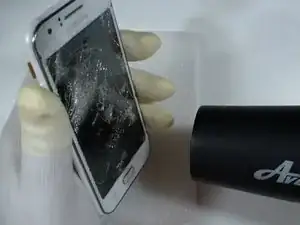

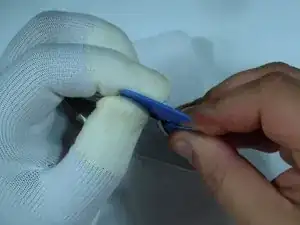

    • Use hot air to warm the glass and to make adhesive soften.

    • With a cutter or knife start the separation.

    • When you have enough space between the glass and the frame, continue with a plastic tool.

  5. 1xDTVlfTZQEFRNbL
    1xDTVlfTZQEFRNbL
    rNqjCQlILW4G16HK
    oHQu3T6JgIfCqXy5

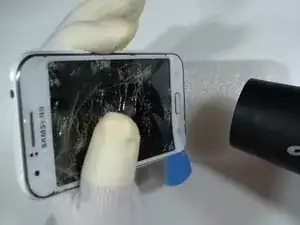

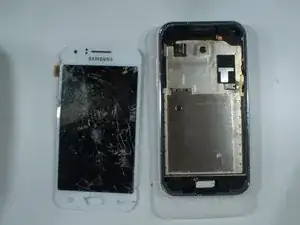

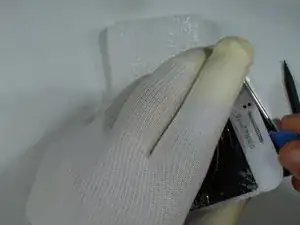

    • You can warm the glass again to make the separation more easy.

    • If you want to change only the touch screen, be careful, don't break the LCD.

    • Finally remove the screen and the glass from the frame.

  6. ZdEjjQNtYMMSFZKN
    ZdEjjQNtYMMSFZKN
    6eE4UfmpGXp2TLFh
    gYCUKWncqNubaxsS

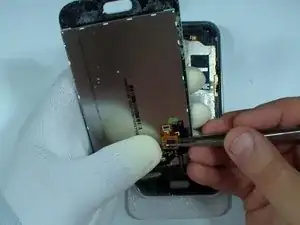

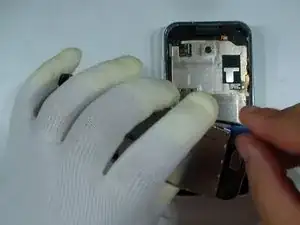

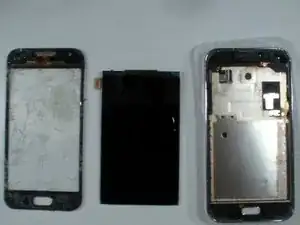

    • If you want to change only the glass, disconnect the touch screen flex cable and gently separate the glass from the LCD.

  7. JZwZo5h3QO1rGlF1
    JZwZo5h3QO1rGlF1
    Jslv2MNGTtfdqOeS
    1X2UrjRdwdXlIkYF

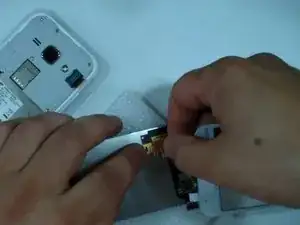

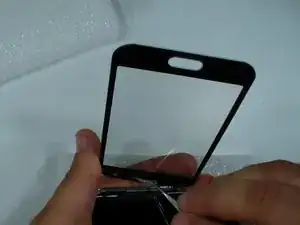

    • Connect the touch screen to the LCD flex cable.

    • Put the LCD and the screen in their place.

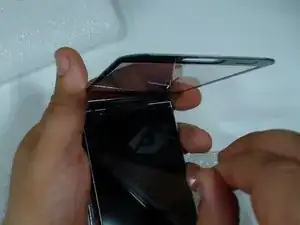

    • Remove the protector from the touch screen.

    • Install the earpiece metal plate - take it from the old touch screen.

    • Remove the protector from the LCD (if it's new).

  8. 5GkAieeXyXgLMqQg
    5GkAieeXyXgLMqQg
    PO6VwTWRKNRNBq4g

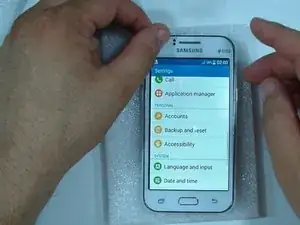

    • Connect the LCD flex cable and you are ready.

    I put a new screen on the phone but when I turn it on the screen is still black with light up lines. What can I do to make the phone work

    Aleshia Te Slaa -

    Where can I get the screen to buy… please

    Kingsley -

Conclusione

To reassemble your device, follow these instructions in reverse order.
