This guide will help you replace the LCD screen or your motherboard on your Samsung Galaxy Rush. It is not a lengthy process and you will have a brand new screen in about 30 minutes.
Strumenti
-
-

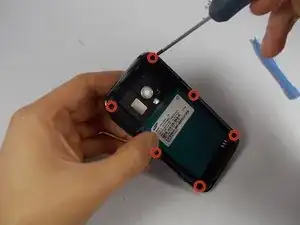

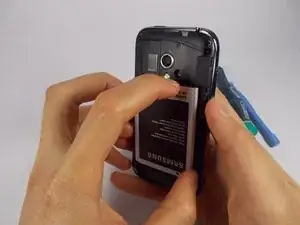

With a small phillips-head screw driver, remove the six screws holding the back panel in place.
-
-
-

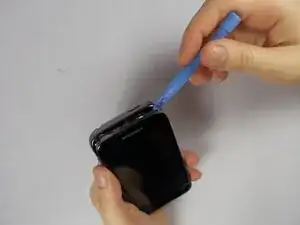

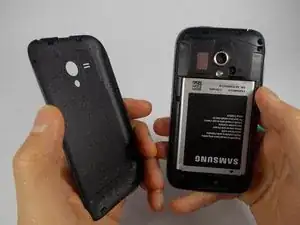

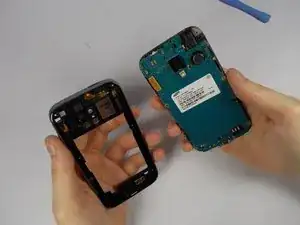

Use the pry tool to pry the back panel from the rest of the phone. Pry from the edge closest to the screen for simplicity.
-
-
-

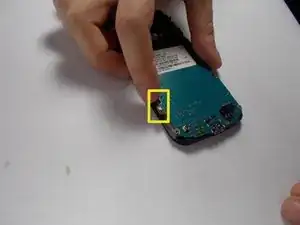

Using tweezers, gently lift connectors from motherboard.
-

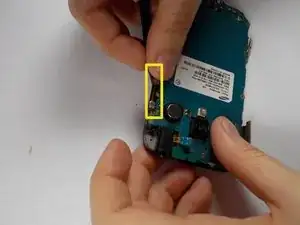

A connector will be on the upper left
-

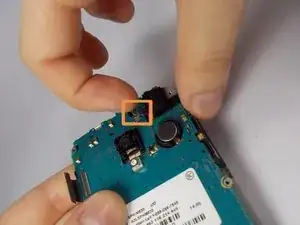

The second connector is located towards the top of the phone. Above the camera. It comes off with ease.
-
-
-

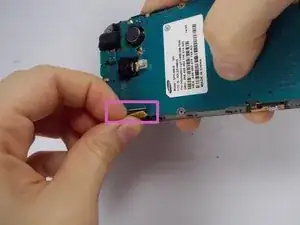

Use the tweezers to carefully remove the 2 adhesive orange ribbons.
-
These stay attached to the motherboard so be careful not to break them.
-
They are on the side of the phone.
-
-
-

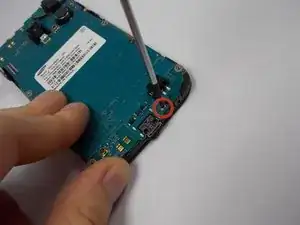

Use a philips-head screwdriver to remove the single screw on the bottom of the phone. Located to the right of the charging port.
-
To reassemble your device, follow these instructions in reverse order.
