Samsung Galaxy S Blaze Frame Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

2 minuti

Introduzione

This shows you how to remove or replace the frame in a Samsung Galaxy S Blaze phone.

  1. jYlZ5U3RmNIdJ1wS

    • Turn the phone over so the back is facing you.

  2. 4Au3atN4kDS1TN3B
    4Au3atN4kDS1TN3B
    RrFRSbSAt1dWUCRK
    JElqGuihYkkstOWD

    • Hold phone to see notch on the side of the back plate.

    • Apply pressure to the back plate to remove the back plate.

  3. LmTc6PyeAEGWsYkr
    LmTc6PyeAEGWsYkr
    2SoC2dpPsNhHmtYg
    sBeqhgiNTOSigKC1

    • Using your index finger, pull the top of the battery. Then pull the battery towards you.

    • The battery will fall out easily.

  4. Vd3i6qpKjPTG5gth
    Vd3i6qpKjPTG5gth
    RHWYfYoxsAIcihJR

    • Remove the eight 4 mm screws from the frame using a Phillips #00 screwdriver.

  5. KW4cYMHaGBZkYZDR
    KW4cYMHaGBZkYZDR
    4lRBRbLEEZFG1ILD
    qXuLYjQE6PndS4D4

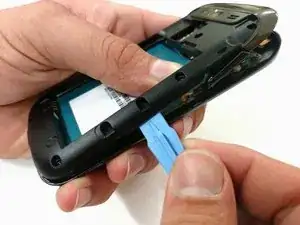

    • Insert the blue plastic opening tool between the frame and the device.

    • Push down on the tool to raise up the frame from the device.

    • Work around the device until the frame is completely off.

    • You may need to use some force to pry the frame off of the device.

Conclusione

To reassemble your device, follow these instructions in reverse order.
