Samsung Galaxy S10e Fingerprint Sensor Prereq

Scritto Da: Arthur Shi
  • Commenti: 0
Samsung Galaxy S10e Fingerprint Sensor Prereq

Difficoltà

Moderate

Passi

5

Tempo Necessario

Nessuna stima

Introduzione

This is a prerequisite guide! This guide is part of another procedure and is not meant to be used alone.

Prerequisite guide for fingerprint sensor steps that happen before the motherboard removal, for the Samsung Galaxy S10e.

  1. E5Ug1ZHJkCNkmtDp
    E5Ug1ZHJkCNkmtDp
    dRt2HXIIIHd4E3Av

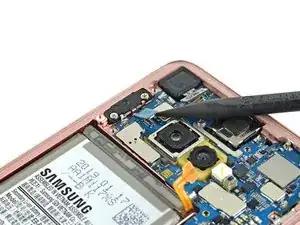

    • Use the point of a spudger to pry up and disconnect the fingerprint sensor connector from its motherboard socket.

  2. moiUUQWhCdAifRti

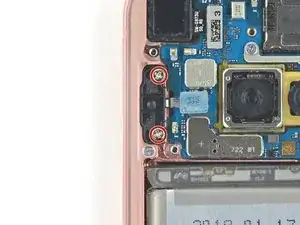

    • Use a Phillips driver to remove the two 4 mm screws securing the fingerprint sensor bracket.

  3. ZdiZhht5LvWWCLsC

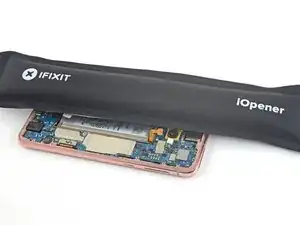

    • Apply a heated iOpener to the fingerprint sensor bracket for one minute to loosen the adhesive.

  4. WMVaJUqRXZdPEhrA
    WMVaJUqRXZdPEhrA
    grLOtpdaQOrSfSqO
    vumoWutkKQMRCcj5

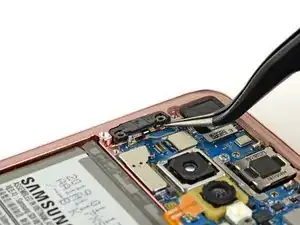

    • The fingerprint sensor bracket is held in place with very strong adhesive.

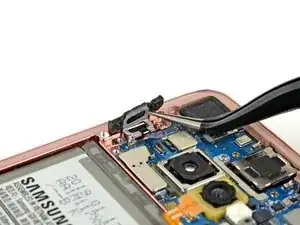

    • Use the points of your tweezers to slowly pry up the fingerprint sensor bracket.

    • If the bracket won't budge, apply more heat and try again.

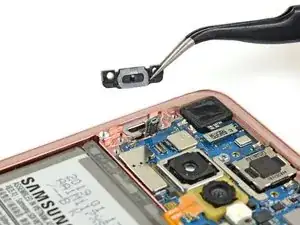

    • Remove the fingerprint sensor bracket.

  5. OHiSHUOIjFhTGMIa
    OHiSHUOIjFhTGMIa
    xQucagFiBwESUsNU

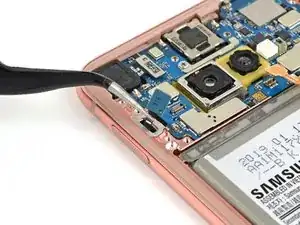

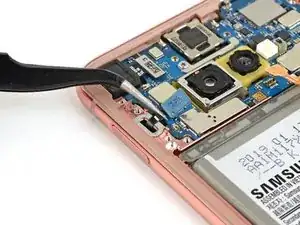

    • Use a pair of tweezers to loosen the fingerprint sensor cable from the adhesive gasket.

Conclusione

To reassemble your device, follow these instructions in reverse order.
