Samsung Galaxy SIII Mini Display Assembly Replacement

Scritto Da: ZFix
  • Commenti: 3
Samsung Galaxy SIII Mini Display Assembly Replacement

Difficoltà

Very difficult

Passi

11

Tempo Necessario

30 - 40 minuti

Introduzione

If the touch screen / digitizer / glass or the LCD display is broken, this manual will show you, how to disassemble the phone and replace the Display Assembly without frame.


[text|align=center]

_______________________________________ Video tutorial _______________________________________

  1. JYJoOPJYTRV4NqBW
    JYJoOPJYTRV4NqBW
    RUqjSBobYRuof1HU

    • LCD Display + Touch screen (Display Assemblay) for Samsung Galaxy S III mini / i8190.

    • Switch off the phone, remove the battery and any SIM and memory card.

  2. qcgFZPY2tC4OWbqn
    qcgFZPY2tC4OWbqn
    GOXinfrlPZqeVVnU
    iBqHQUMqTZAJTs2C

    • Remove 10x Phillips screws.

    • With a plastic tool remove the Middle frame.

    Screw size is PH00, and they're all the same size, so don't worry about getting any of them mixed up! :)

    Craig Jessup -

  3. t6XbcYQSu2VsJBwO
    t6XbcYQSu2VsJBwO
    nyYAMjaJKxwABHfu
    XBoAB62kDtwBJWVL

    • Disconnect:

    • Menu buttons flex cable

    • Micro SD Card reader flex cable

    • Lift up slightly the mother board from the right edge.

    • Unstick the Earpiece and Main camera from the display frame. Be careful, don't break flex cables.

    • Now disconnect the LCD Display flex cable which is located on the underside of the board.

  4. tfQlpMyCxZde3yuM

    • Front camera

    • Main / Rear camera

    • Earpiece

    • Loudspeaker

    • Vibro motor

    • Micro SD Card reader

  5. 6sDixPifRjmAK3rE
    6sDixPifRjmAK3rE
    AK5WsqSMBQHDtmoP
    e4t4LjXBiLEkY4UW

    • Let's test the new spare part.

    • First connect the Display assembly, grab the phone comfortably and then put the battery.

  6. LBgkxS6TMsFNKjcq
    LBgkxS6TMsFNKjcq
    Y3rFaWpJtFTVWCDo
    YAjwwPxvaEXLALIc

    • Warm the touchscreen to make adhesive tape soft. You can use a hair dryer.

    • If the glass is cracked, put the tape in order not to scatter pieces.

    • Use the front camera hole to separate the glass at the corner.

    • Continue with separation with plastic tools, from up to down.

  7. 3hAQJLtnWebs6tFR
    3hAQJLtnWebs6tFR
    PPuCOZGFYGwmPUPx
    a4kAGK6Ar3ZlXJbD

    • Gently separate the menu buttons flex cable from the touchscreen.

  8. LsOIuXjQBcTkGGoR
    LsOIuXjQBcTkGGoR
    ScpDvMCGgY1iq1LZ
    J2dlRhRO2EBsIqwQ

    • If the display is left on the frame, use the same techniques to remove it.

  9. bJQ4jT2QUonuvtEt
    bJQ4jT2QUonuvtEt
    1wgPvdtxF1KvTZDt
    FUG3KFNKR1GMtwHe

    • Clean the frame from the remnants of tape and install new.

    • Be careful with the menu buttons and the holes for the camera and the light sensor, don't cover them.

  10. ChOROEOxJnJ34OVP
    ChOROEOxJnJ34OVP
    cfZooF2QL1Fc4W6o
    Ba1LehZA1bWLCRFp

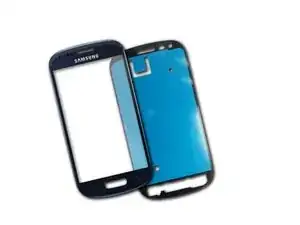

    • Will be easier if you use adhesive, ready for the model.

    • Install the new display assembly and start with reassembling.

  11. ouv2FuPfDcnC2iYq

    • That's all.

    • .

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

ZFix

Membro da: 09/12/13

191055 Reputazione

2 commenti

Followed the VDO exactly and managed to fix the screen. Getting the right glue for the screen delivered took the longest time.

Erick Ogam -

Worked perfectly, used regular glue I had at home and it worked just fine. Thanks!!

Elisa Díaz Ipes -
