This guide shall detail and illustrate how to replace the charging port and headphone jack for a Samsung Galaxy Y in the situation of either part not working.
-
-

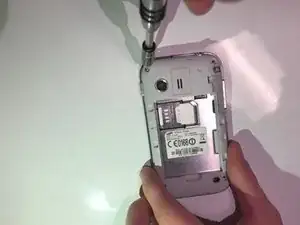

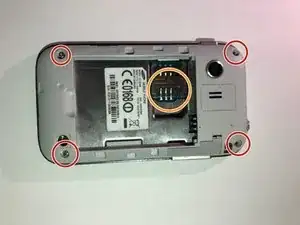

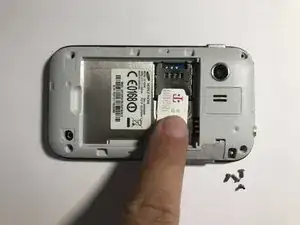

Use the screwdriver with a PH000 screwdriver head to remove the four 5mm screws located in the corner of the interior back panel.
-
Remove the SD card as well by sliding the card out of it's slot.
-
-
-

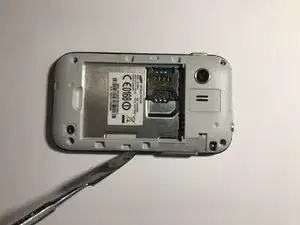

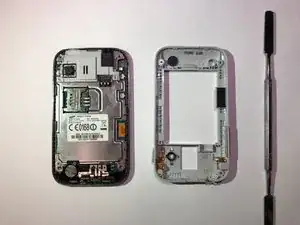

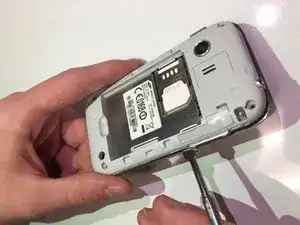

Use metal pry tool to separate the interior back panel from the interior hardware and screen.
-
-
-

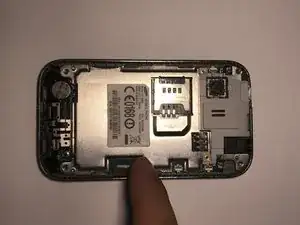

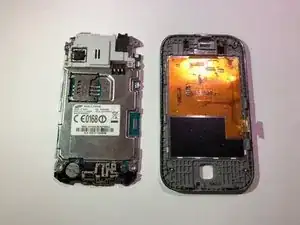

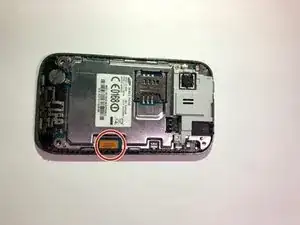

Disconnect the orange motherboard connection, then remove interior hardware from the front screen display.
-
-
-

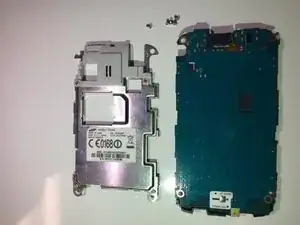

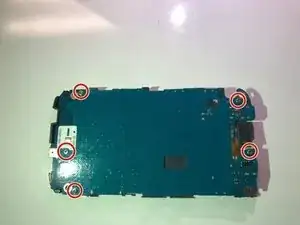

Use a Phillips #000 screwdriver to remove the five 2mm screws located in the corner of the silver protective panel.
-

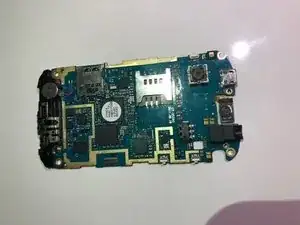

If the motherboard is cracked or damaged, then replace with a new one.
-
-
-

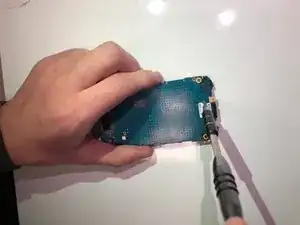

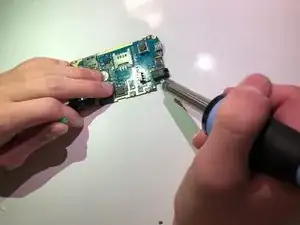

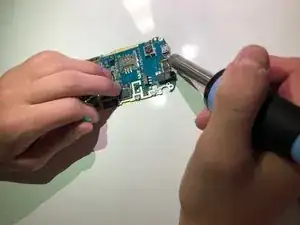

Desolder the charging port and headphone jack connections.
-
Wait until the metal cools down to pull the pieces off.
-
To reassemble your device, follow these instructions in reverse order.
