This guide shall detail and illustrate how to replace an LCD display for a Samsung Galaxy Y in the situation that the LCD is corrupt, or unresponsive,
Ricambi
-
-

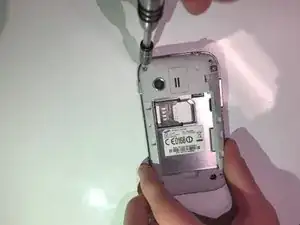

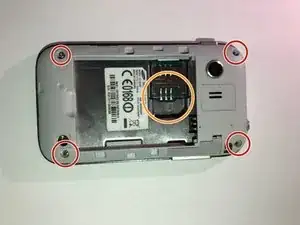

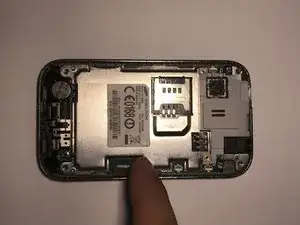

Use a Phillips #000 screwdriver to remove the four 5mm screws located in the corner of the interior back panel.
-

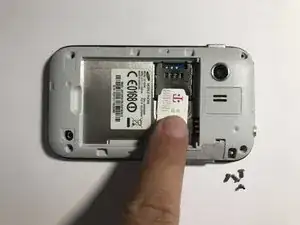

Remove the SD card as well by sliding the card out of it's slot.
-
-
-

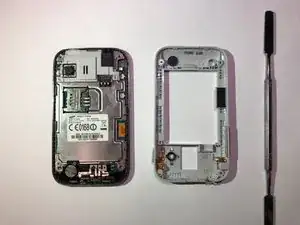

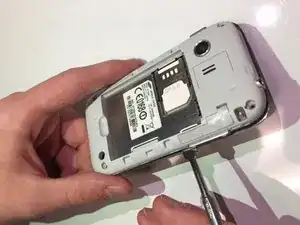

Use the metal pry tool to separate the interior back panel from the interior hardware and screen.
-
-
-

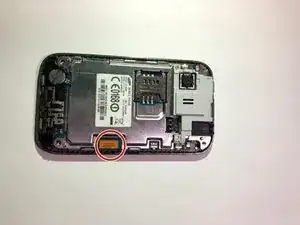

Disconnect the orange motherboard connection, then remove the interior hardware from the front screen display.
-
-
-

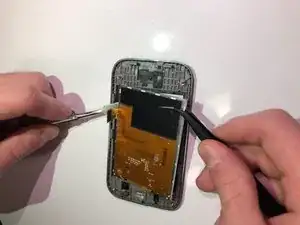

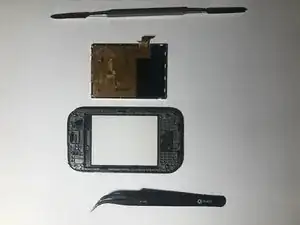

Gently remove the LCD screen lens from the outer screen using a pair of tweezers and the metal pry tool. Replace the faulty LCD.
-
The LCD maybe be glued in place, so the device might need to be heated to remove the part.
-
To reassemble your device, follow these instructions in reverse order.
