Introduzione
This guide shall detail and illustrate how to replace the motherboard for a Samsung Galaxy Y.
-
-

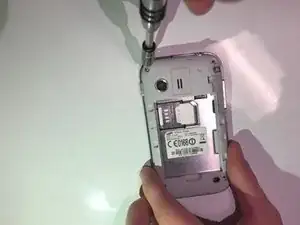

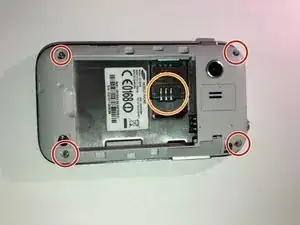

Use a Phillips #000 screwdriver to remove the four 5mm screws located in the corner of the interior back panel.
-

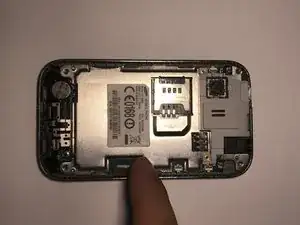

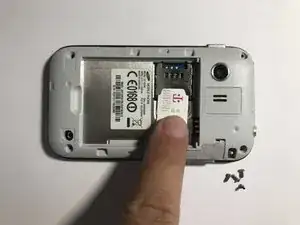

Remove the SD card as well by sliding the card out of its slot.
-
-
-

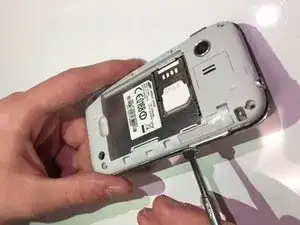

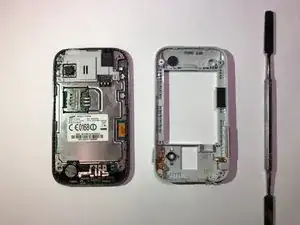

Use the metal pry tool to separate the interior back panel from the interior hardware and screen.
-
-
-

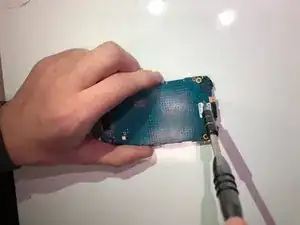

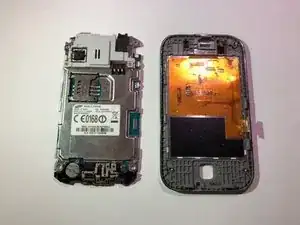

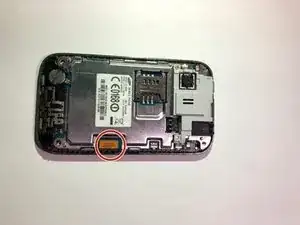

Disconnect the orange motherboard connection, then remove the interior hardware from the front screen display.
-
-
-

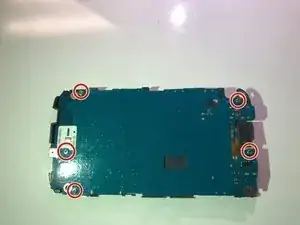

Use a Phillips #000 screwdriver to remove the five 2mm screws located in the corner of the silver protective panel.
-

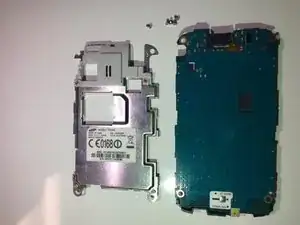

If the motherboard is cracked or damaged, then replace with a new one.
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
