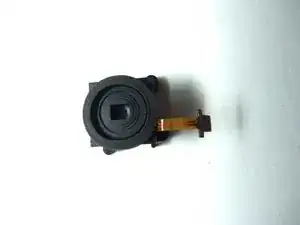

Samsung HMX-W300 Lens Replacement

To remove the wristband of the device, grab the middle loop and pull the band through.

Remove four screws with a Hex 1.5 mm screwdriver.

Open the HDMI door on the side of the camera.

Remove the single screw using a Phillips #00 screwdriver.

Use the iFixit opening tool on both sides on the device. Pry apart both sections with light force.

Pull the wire ribbon out with a pair of tweezers.

Use tweezers to remove the tape.

Use tweezers to grab the wire ribbon, then pull the wire out of connection.

There are 5 Phillips size 00 screws. Remove all 5 screws.

Wire ribbon is attached to the motherboard.

Pry the motherboard up using the plastic opening tool.

Use tweezers to disconnect the wire as shown. This will loosen the motherboard from the rear case.

Shows front of motherboard and rear of motherboard.

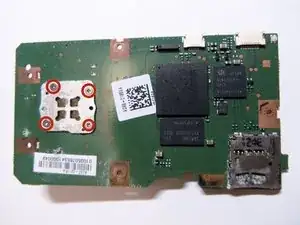

Lens has 4 Phillips size 00 screws.

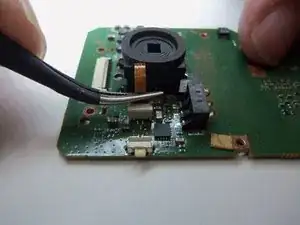

Unplug the wire ribbon from the motherboard.

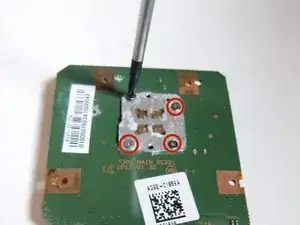

Remove all 4 PH(00) screws, this will loosen the lens from the motherboard.
