Samsung NP350E5C-A02US Hard Drive Replacement

Scritto Da: James Kingrey
  • Commenti: 0
Samsung NP350E5C-A02US Hard Drive Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

5 minuti

Introduzione

If your hard drive is bad, or you need a larger hard drive, this guide will show you how to replace your hard drive.

  1. LWYKxxBVEXYjyYgt

    • Lay the laptop down so that the bottom is facing up.

    • There is no battery in the picture.

  2. FvwcI22Sj5wvuVL2

    • Slide the two plastic tabs to the opposing sides.

    • There is no battery in the picture.

  3. 6LCWOKHdLYwHhAlT

    • While both are in the unlocked position, slide the battery out.

    • There is no battery in the picture.

  4. EehGlSRxSWjAGTSq

    • Remove the M2.5x5 mm screw with a Phillips #0 screwdriver.

  5. 3Wd1KpC3AD3qZLpV

    • Slide the cover 1/4" towards the front of the laptop.

  6. PwQGHKLYDGufoAP3

    • Then, lift the cover off.

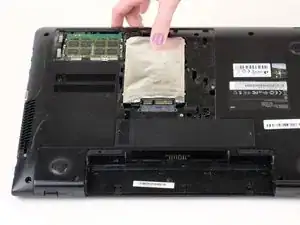

  7. oVNyqfGweUQNkdFt

    • Slide the hard drive 1/4" towards the front of the laptop.

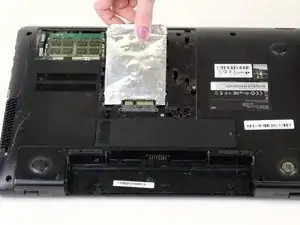

  8. T3aTQguTu1VoMkwA

    • Then, lift the drive up and out.

Conclusione

To reassemble your device, follow these instructions in reverse order.
