Samsung NP350E5C-A02US Wifi card Replacement

Difficoltà

Easy

Passi

9

Tempo Necessario

2 minuti

Introduzione

If you find that your laptop is having connection issues and isn't resolved after the given steps on the troubleshooting page, then replace the Wifi card.

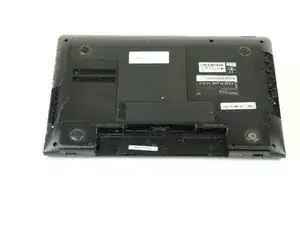

  1. LWYKxxBVEXYjyYgt

    • Lay the laptop down so that the bottom is facing up.

    • There is no battery in the picture.

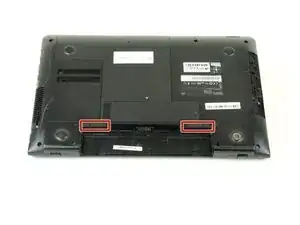

  2. FvwcI22Sj5wvuVL2

    • Slide the two plastic tabs to the opposing sides.

    • There is no battery in the picture.

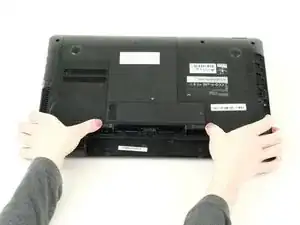

  3. 6LCWOKHdLYwHhAlT

    • While both are in the unlocked position, slide the battery out.

    • There is no battery in the picture.

  4. mHuUZSWD6FKsAx1f

    • Look for the compartment with the Wifi symbol on it.

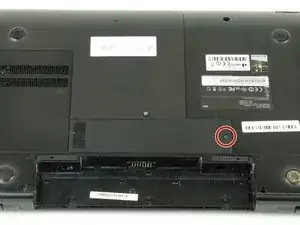

  5. rFMBjoWx1uBMYQCQ

    • Using a Phillips #1 screwdriver, remove the 5 mm screw located beside the Wifi symbol.

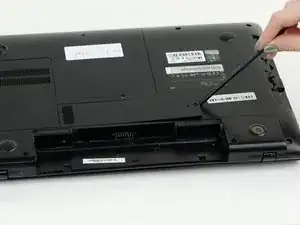

  6. 6oTglOgDTvTklYhO

    • Gently pry up cover using a plastic spudger or opening tool.

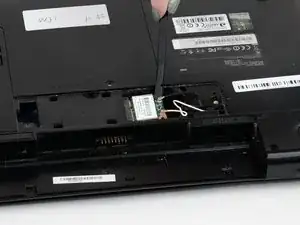

  7. lGbKAbPGaXtPE2jQ

    • Gently remove the two wires attached to the Wifi card by using a plastic opening tool or plastic spudger to pry up from under where the wire is attached.

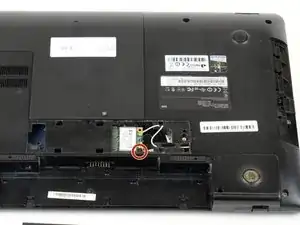

  8. WJWdiUvPV13temN4

    • Using the Phillips #0 screwdriver, remove the M2.5x3 mm screw holding in the Wifi card.

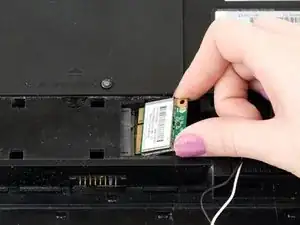

  9. BUIDJwwjCQMQM1Yx

    • Gently pull out the Wifi card.

Conclusione

To reassemble your device, follow these instructions in reverse order.
